Undercarriage


Back home to Tractorparts.com
for all your used, new, spare & rebuilt parts needs.

New!
Part Number Interchange/Cross References

Email:  webmaster@tractorparts.com
for questions



NEW STEERING CLUTCH DISCS - AFTERMARKET

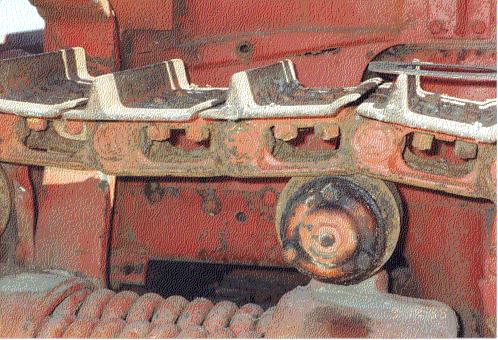

images/undercarriage/u13.jpg (52246 bytes)

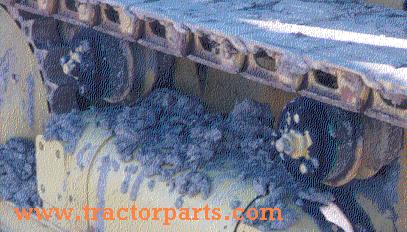

EARLY TD9 TRACK

images/undercarriage/u21.jpg (29554 bytes)
TD14 EARLY TRACK STREET PADS

images/undercarriage/u14.jpg (75300 bytes)

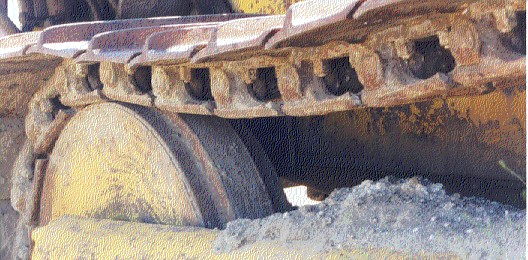

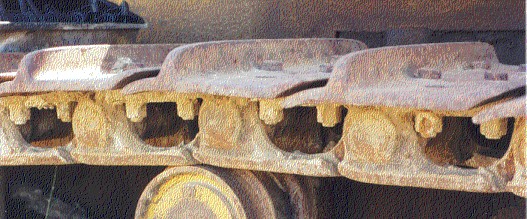

TD24 TRACK FRONT IDLER

images/undercarriage/u15.jpg (62101 bytes)
TD24 RAILS PADS C-ROLLER

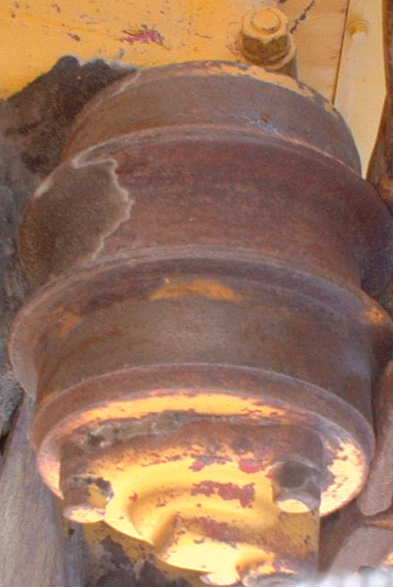

td14 carrier roller2
EARLY STYLE TD14 CARRIER ROLLER
115.00 EA

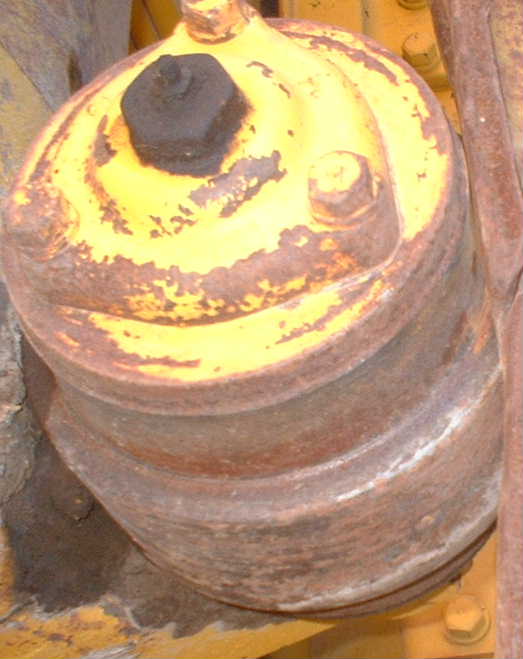

td14 carrier roller3
HEAVIER DUTY TD14 CARRIER ROLLER
115.00 EA

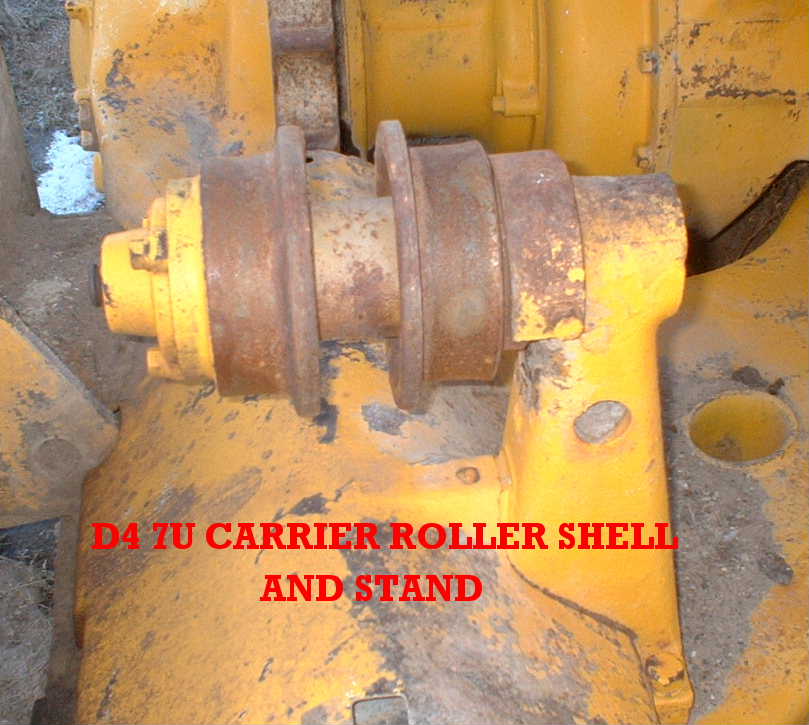

D4 7U CARRIER ROLLER SHELL AND STAND
SHELLS AT $70 EA AND STAND AT $75 EA, (3) AVAILABLE
D4 7J/2T/5T/6U/7U

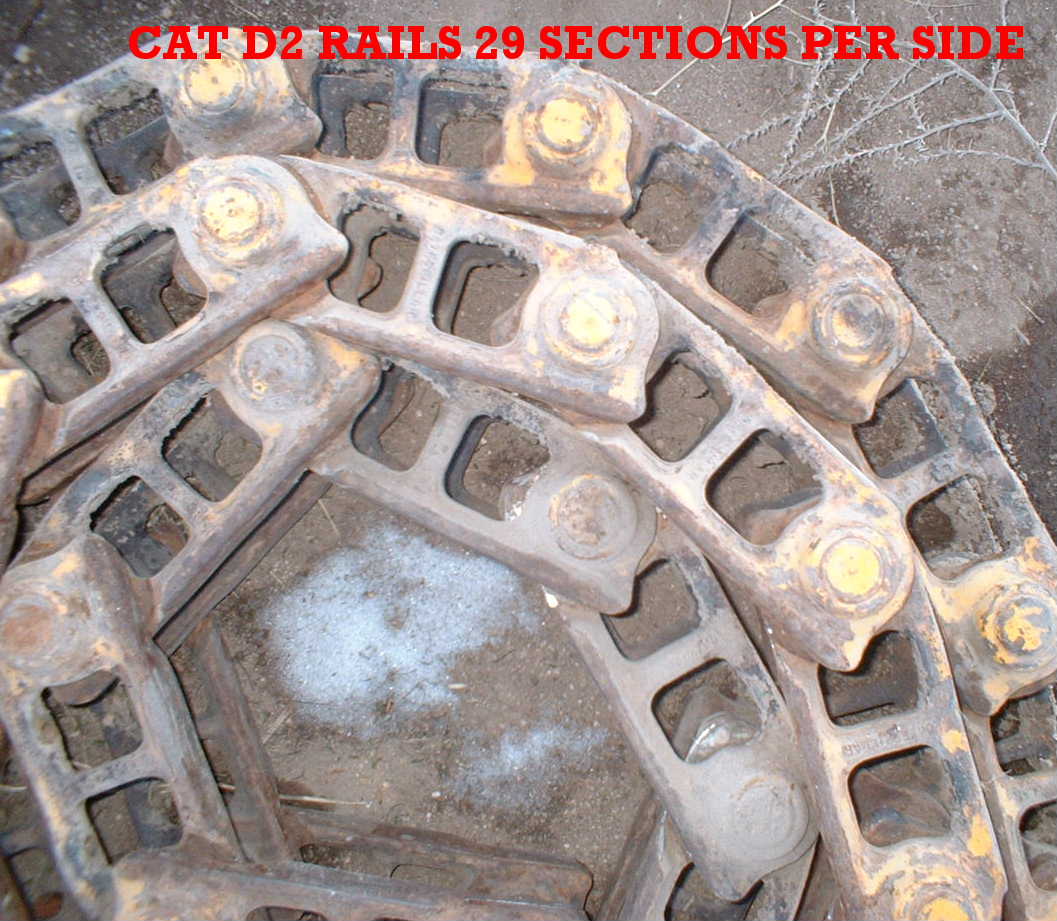

CAT D2 RAILS 29 SECTIONS PER SIDE
D2 RAILS, 29 SECTIONS PER SIDE, 7/16 BOLT HOLES LINK HT IS 2 7/8"
800.00 PAIR TTL
SEE NOTE 2 BELOW

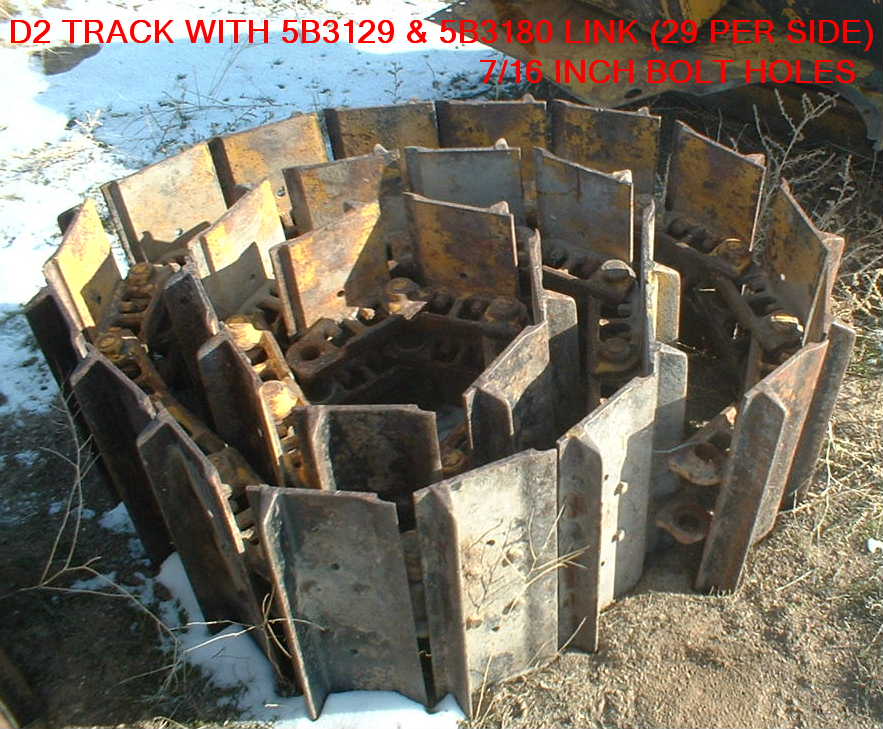

CAT D2 TRACK
D2 TRACK, PADS SOLD, RAILS SHOWN  IN PREVIOUS PICTURE
<---------

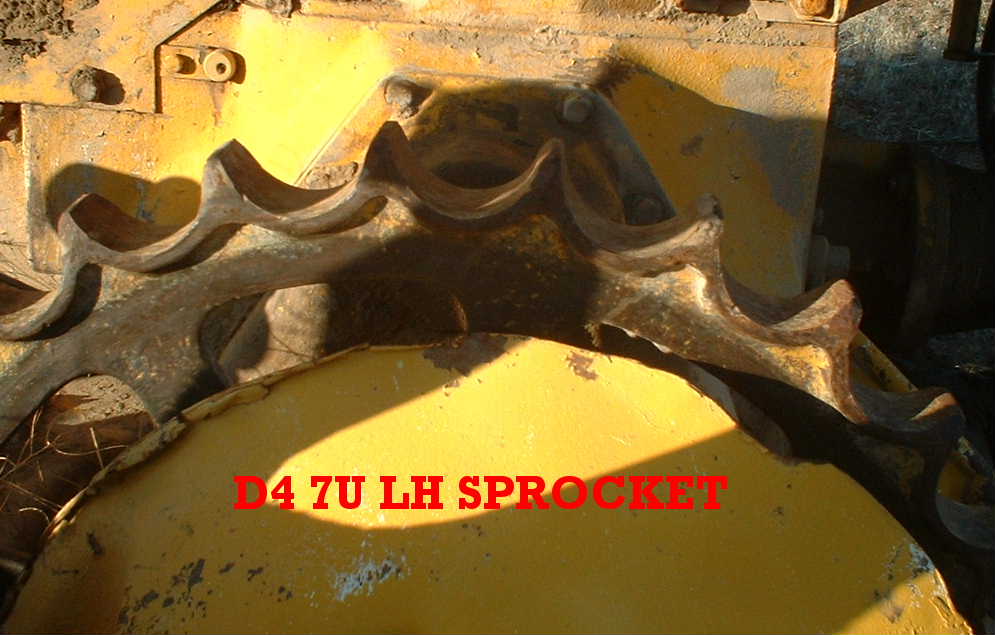

D4 7U LH SPROCKET
D4 7U LH SPROCKET
150.00 EA

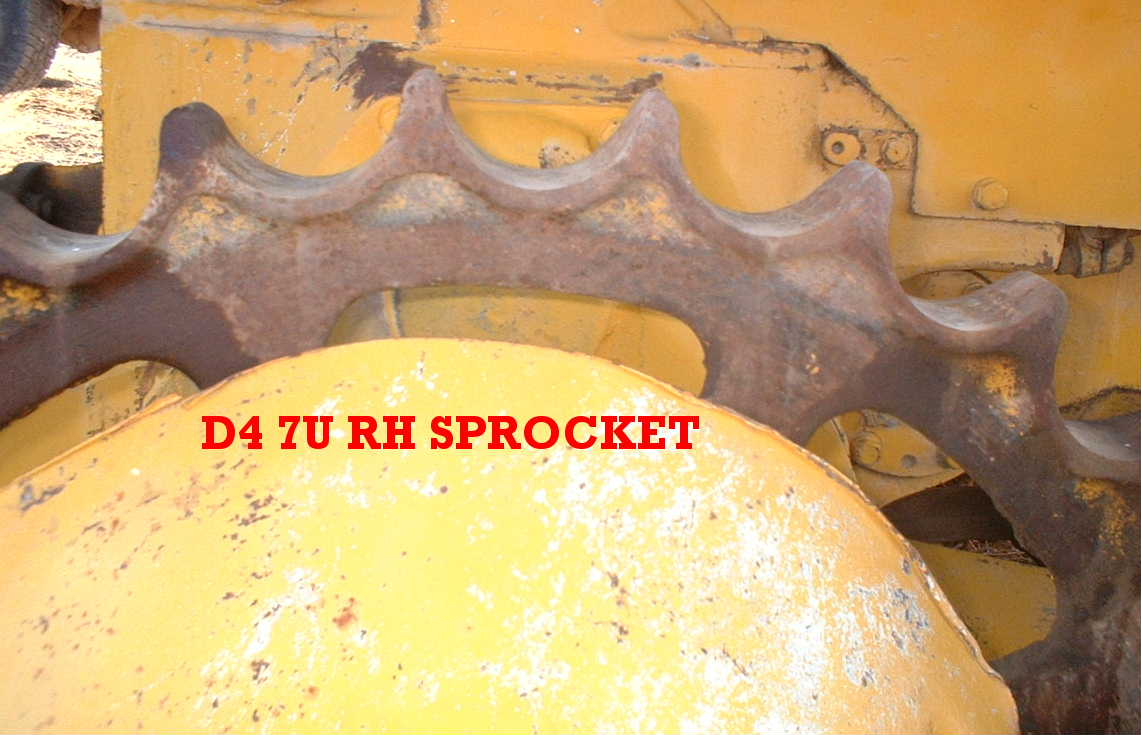

D4 7U RH SPROCKET
D4 7U RH SPROCKET
150.00 EA

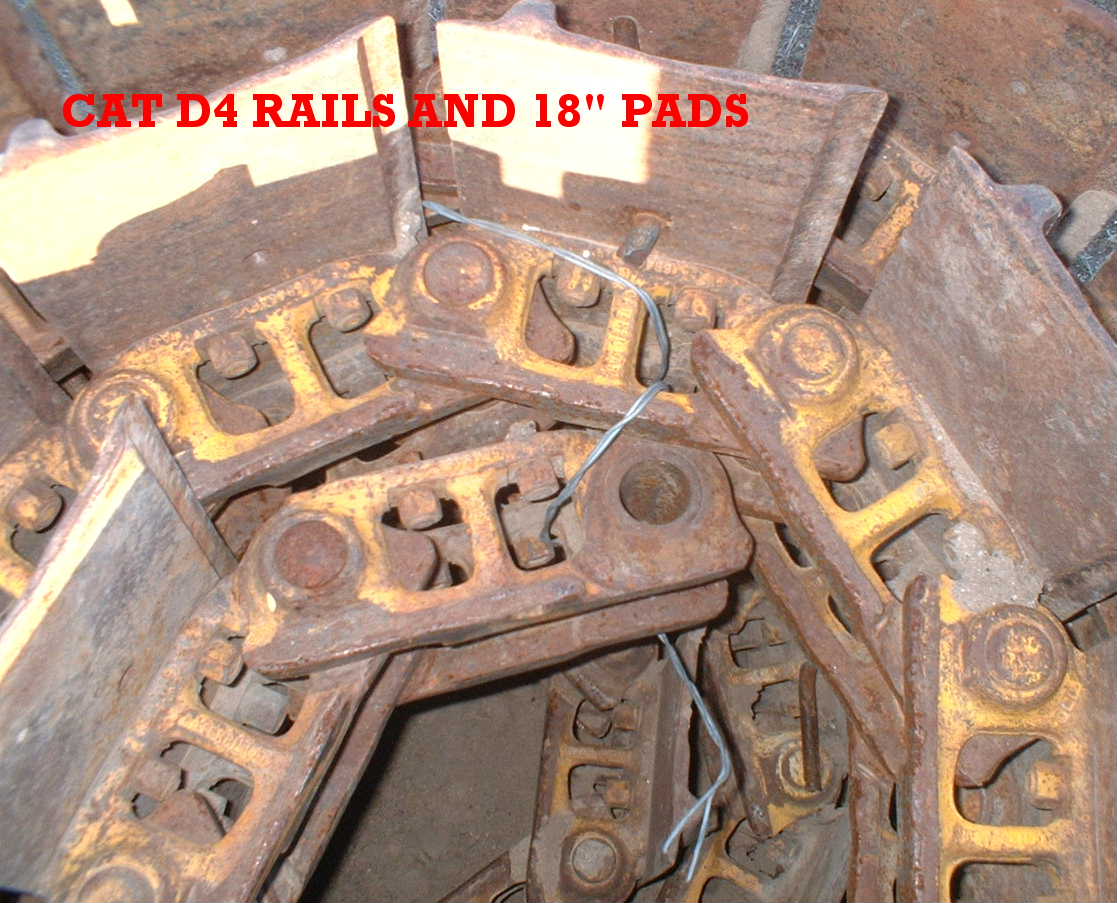

CAT D4 RAILS AND 18in PADS
D4 RAILS W/ 18" PADS, 31 LINKS/SIDE
BOTH SIDES
1250.00 TOTAL
SOLD

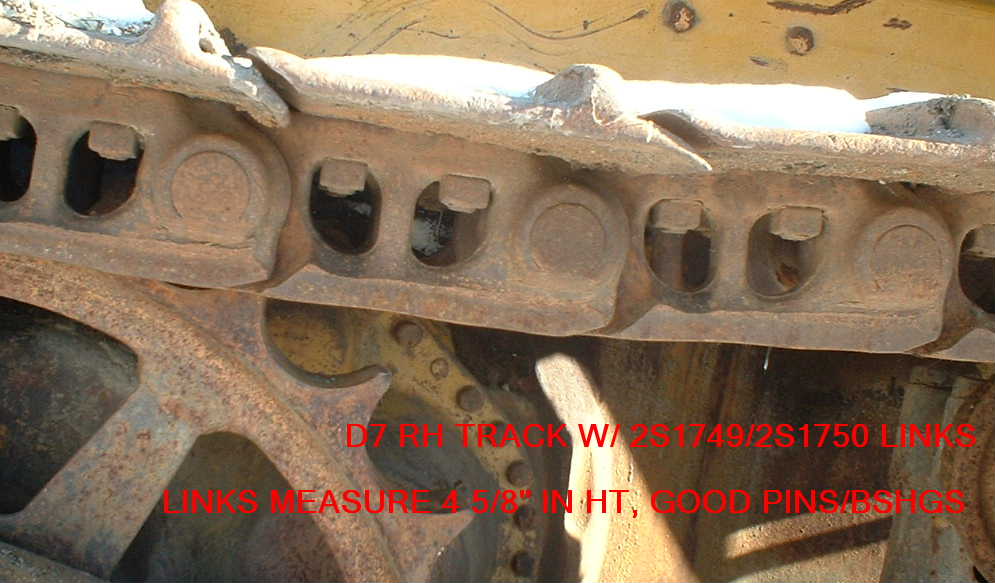

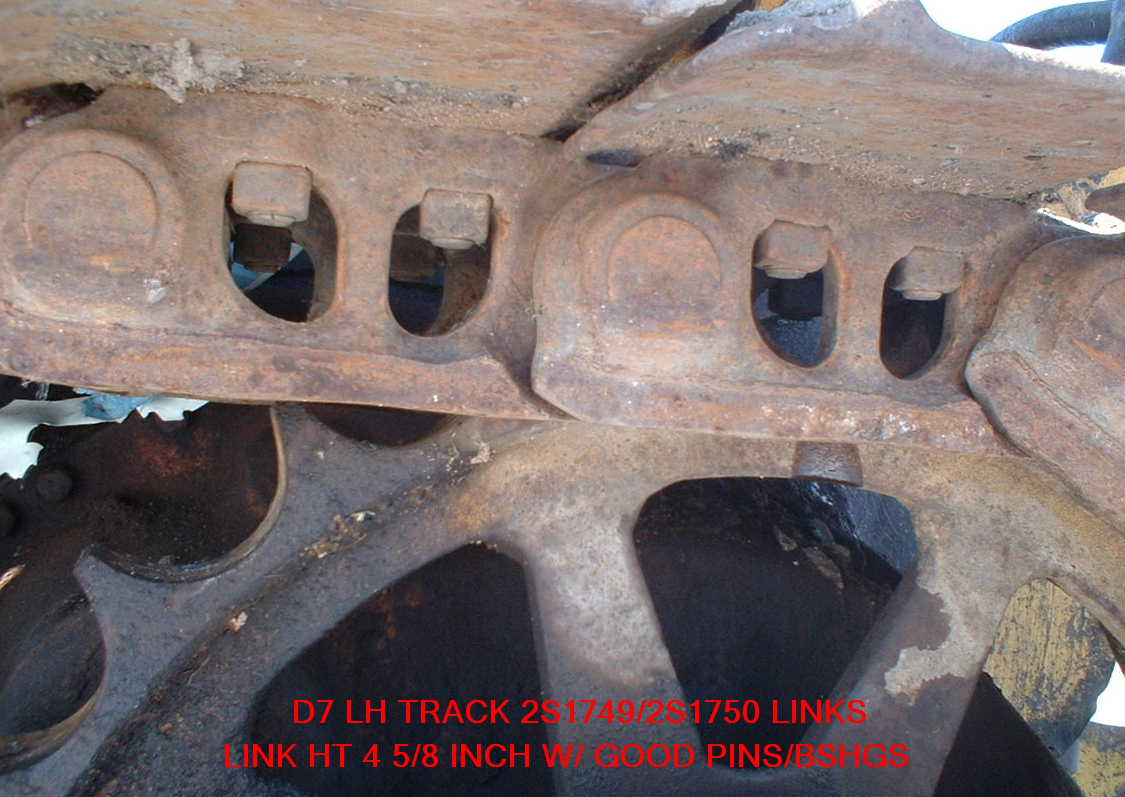

D7 RH TRACK
D7E/D7F TRACK ON D7 17A RH SIDE
3,000.00 PAIR
(Total, not each)
SOLD

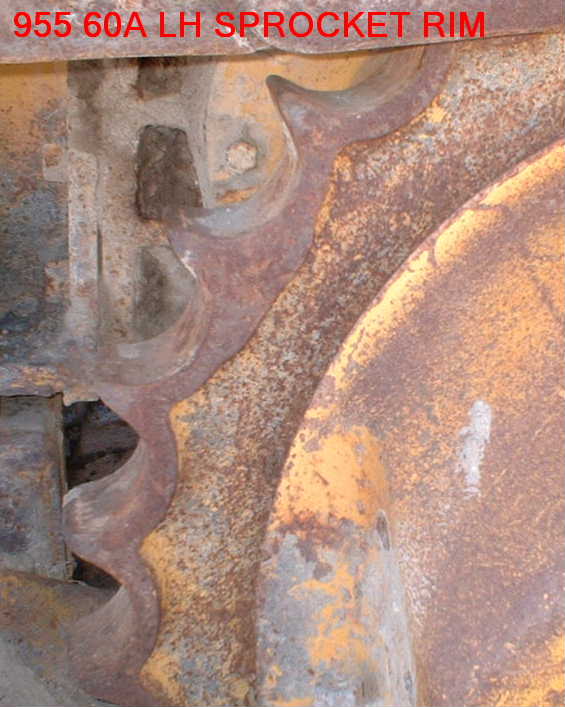

955 60A LH SPROCKET RIM
955H 60A LEFT HAND SPROCKET

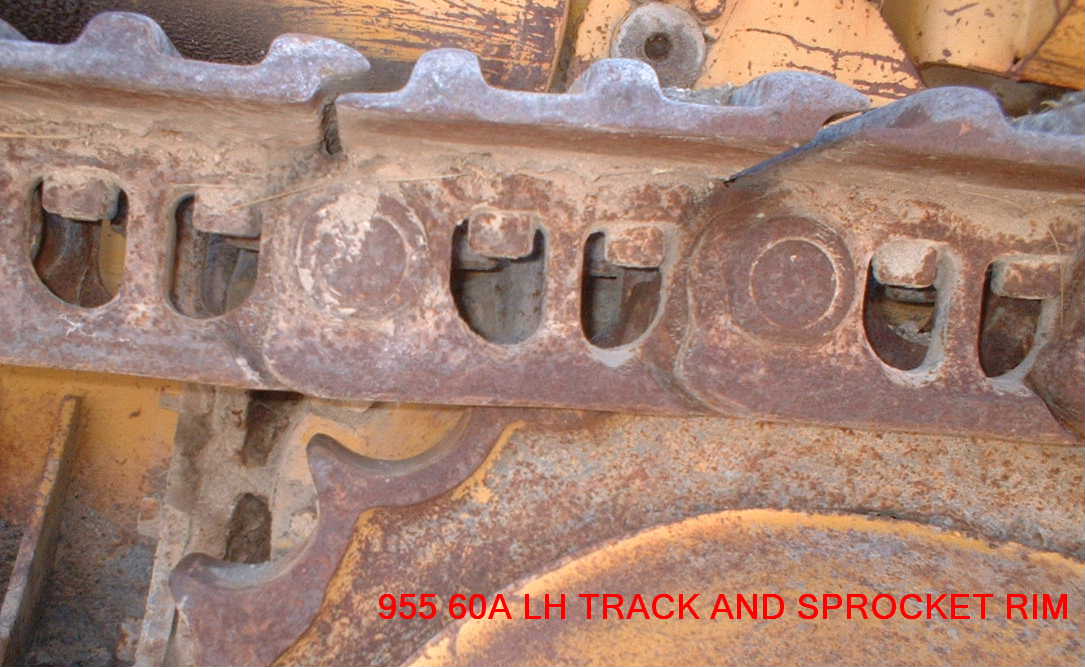

955 60A LH TRACK AND SPROCKET RIM
955 60A LH TRACK
BOTH SIDES OF TRACK 2,500 FOR PAIR
SOLD
SEE NOTE 6 BELOW

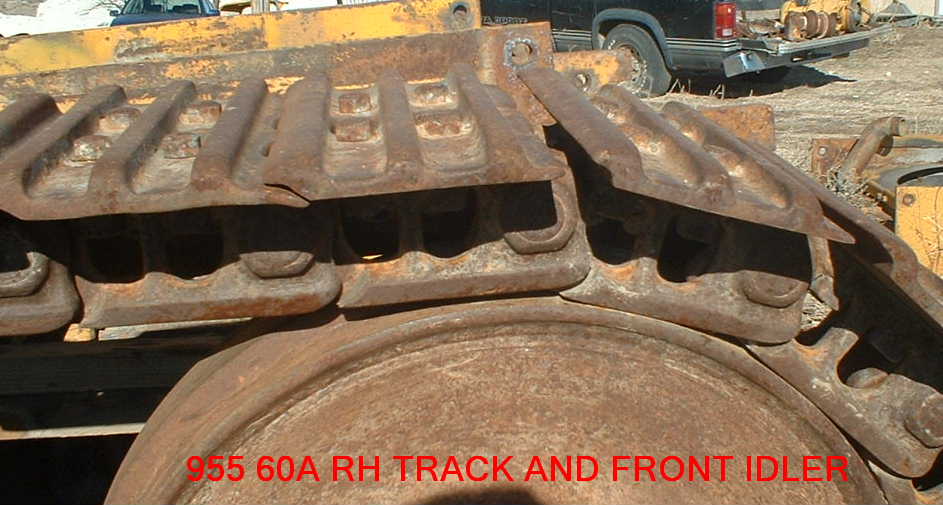

955 60A RH TRACK AND FRONT IDLER
955 60A RH TRACK AND FRONT IDLER
2S5959-2S5960
LINK P/N'S
6.75" PITCH
SOLD

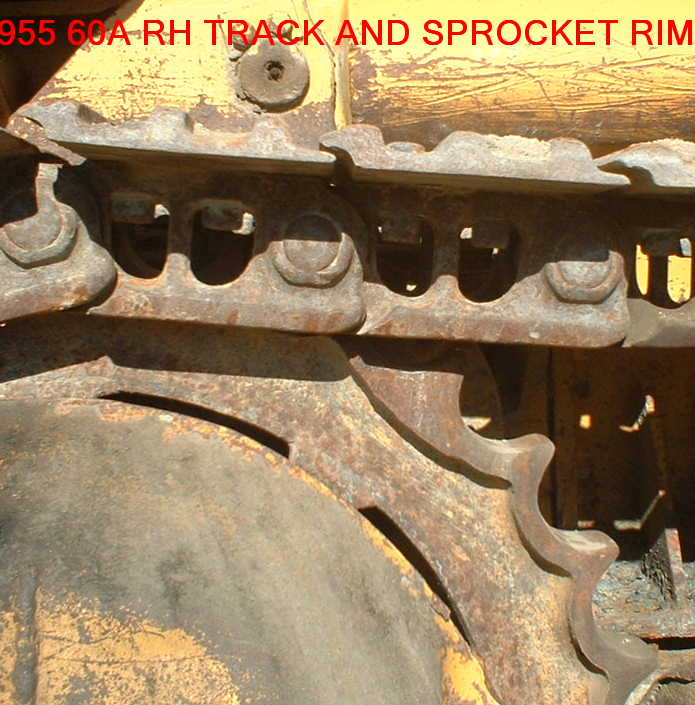

955 60A RH TRACK AND SPROCKET RIM
955 60A RH TRACK AND SPROCKET RIM
SEE NOTE 6 BELOW

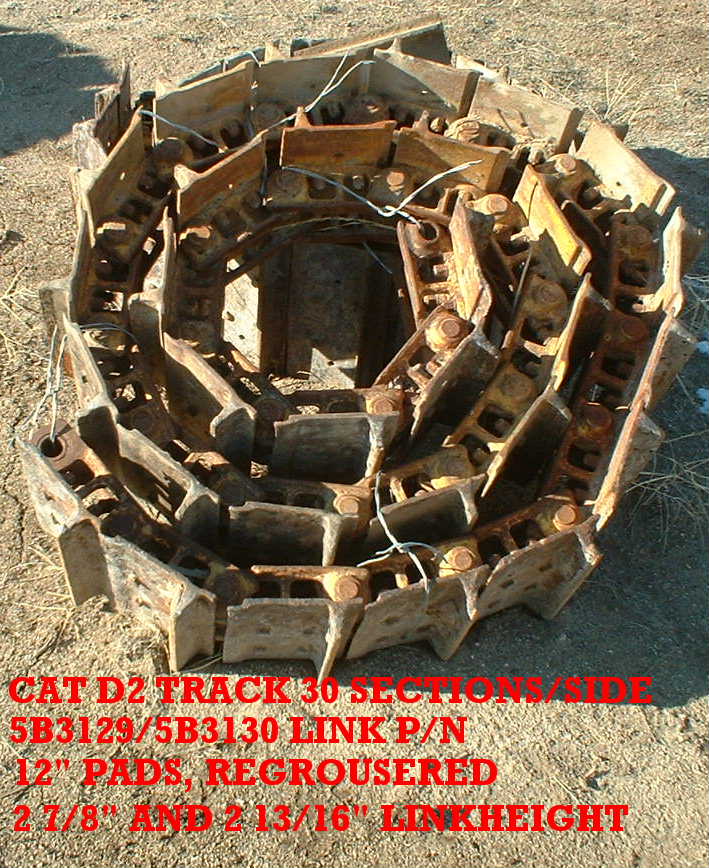

CAT D2 TRACK GROUPS
D2 TRACK GROUPS QTY 2 $1,000 TOTAL FOR PAIR

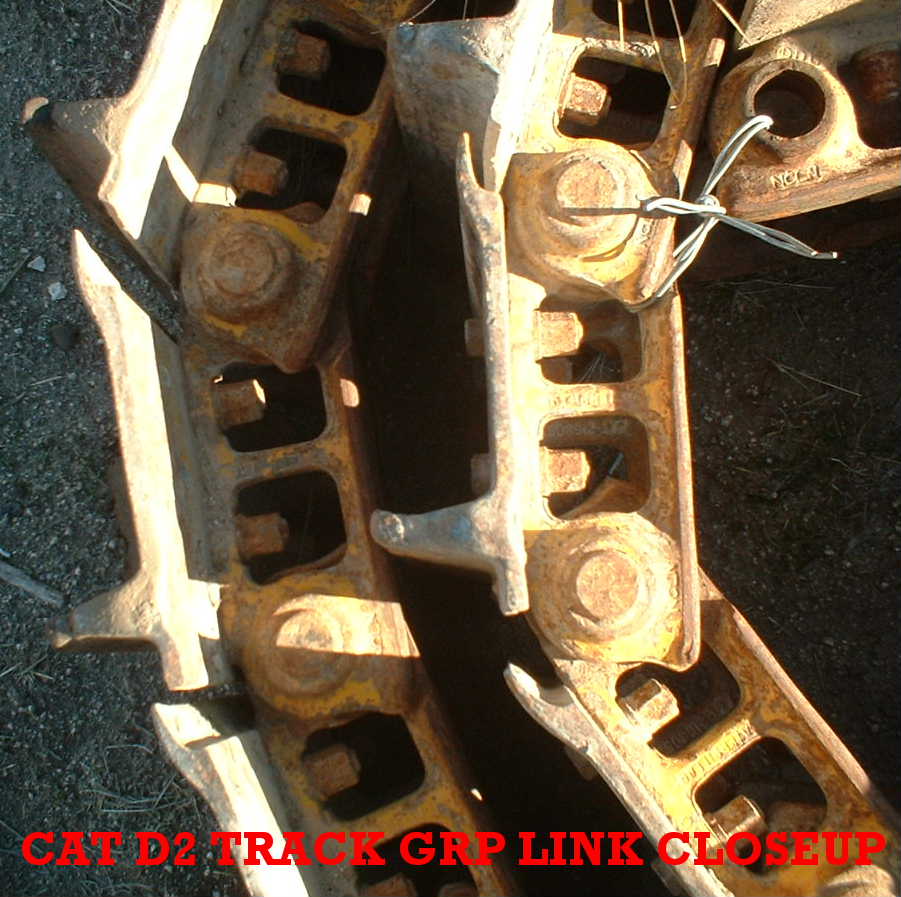

CAT D2 TRACK GRP LINK CLOSEUP
D2 TRACK LINK CLOSE UP VIEW
SEE NOTE 2 BELOW

P&H1200 TRACK GROUPS
P&H 1200 OR P&H1250 TRACK GROUPS (2) SIDES $15,000.00 TOTAL
SEE NOTE 1 BELOW

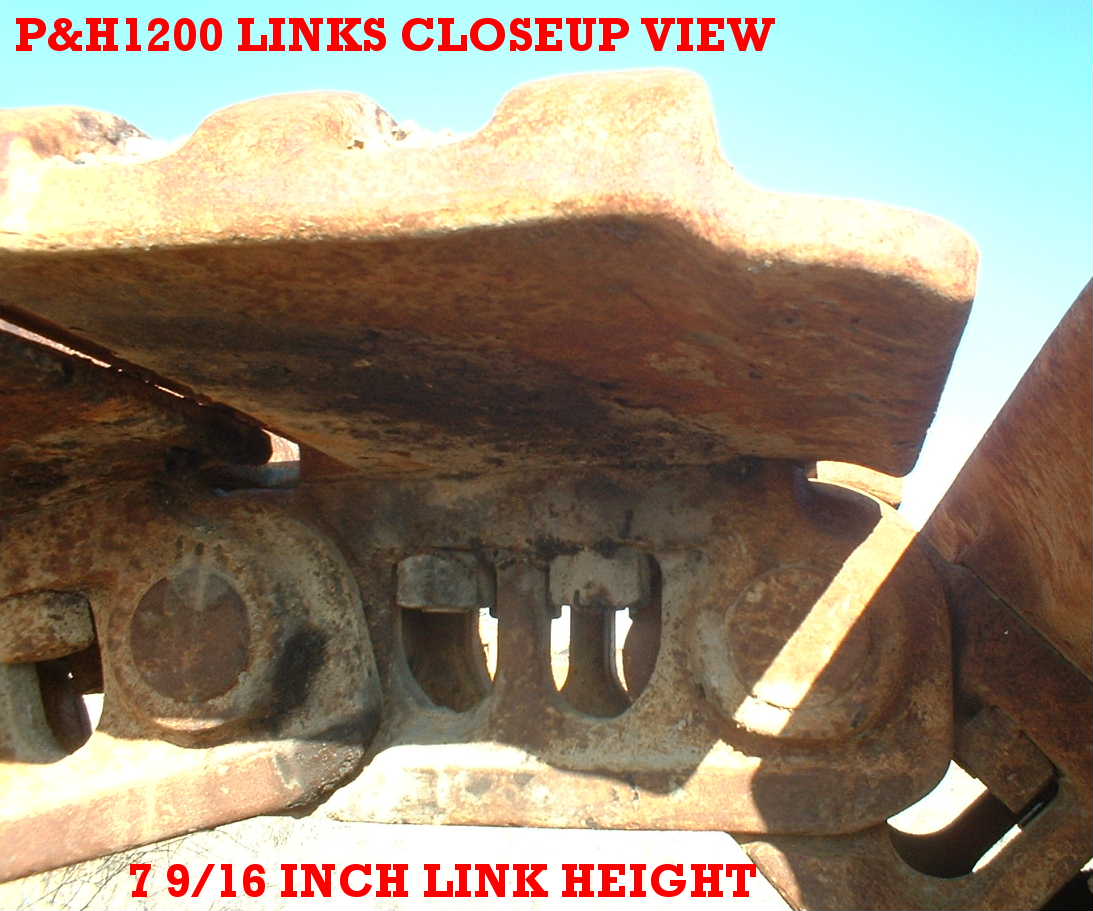

P&H1200 LINK CLOSEUP
P&H1200 OR P&H1250 LINK CLOSE UP VIEW

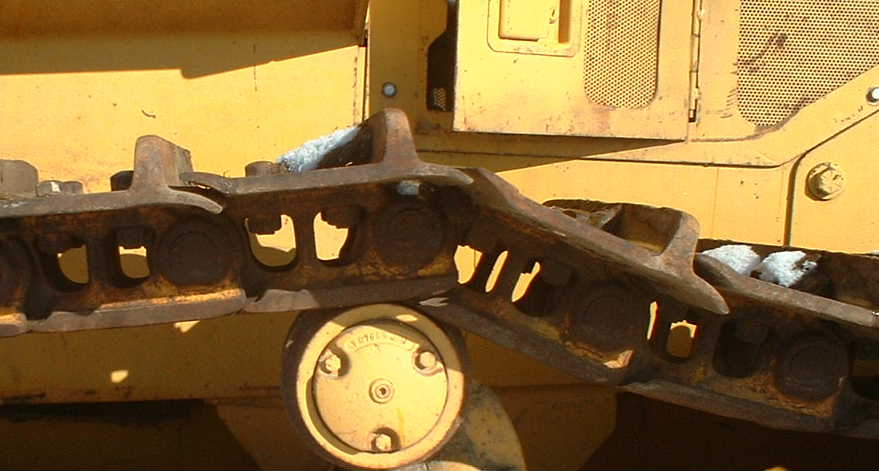

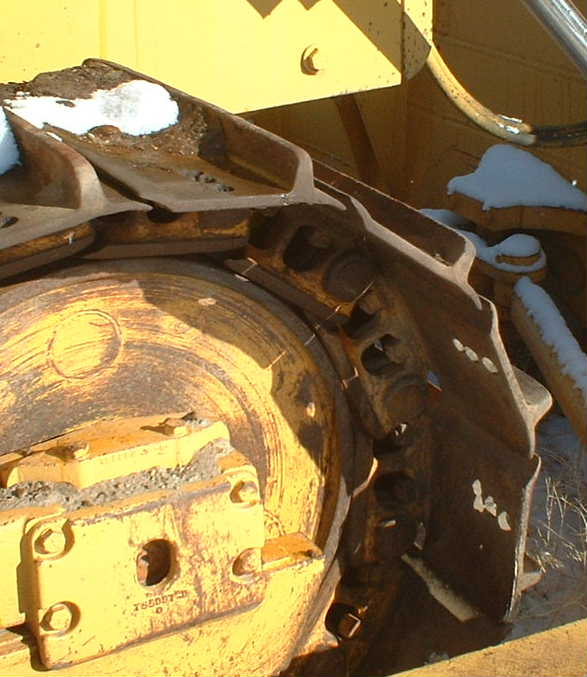

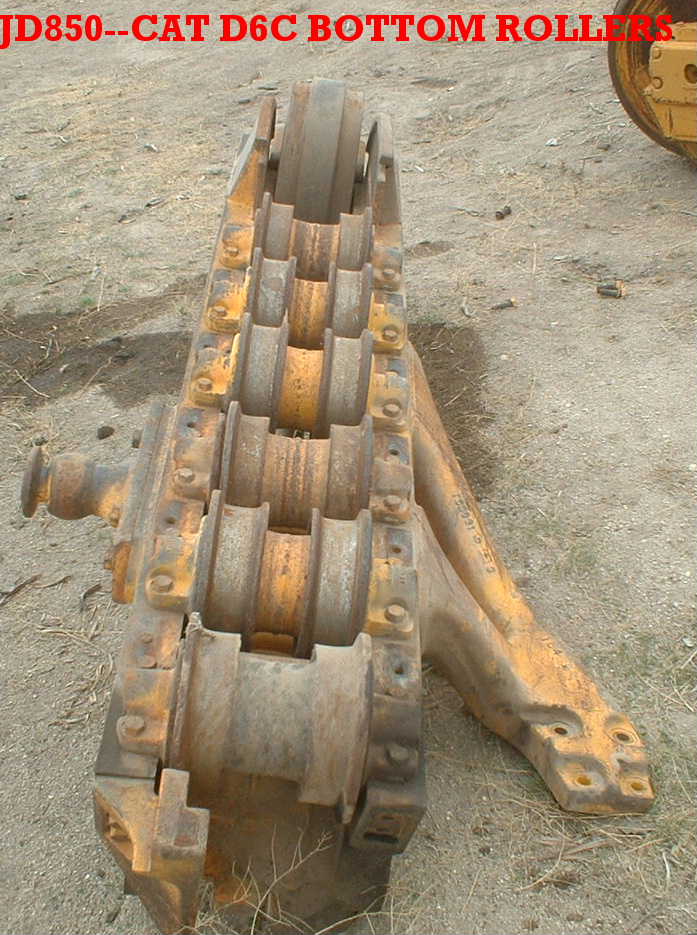

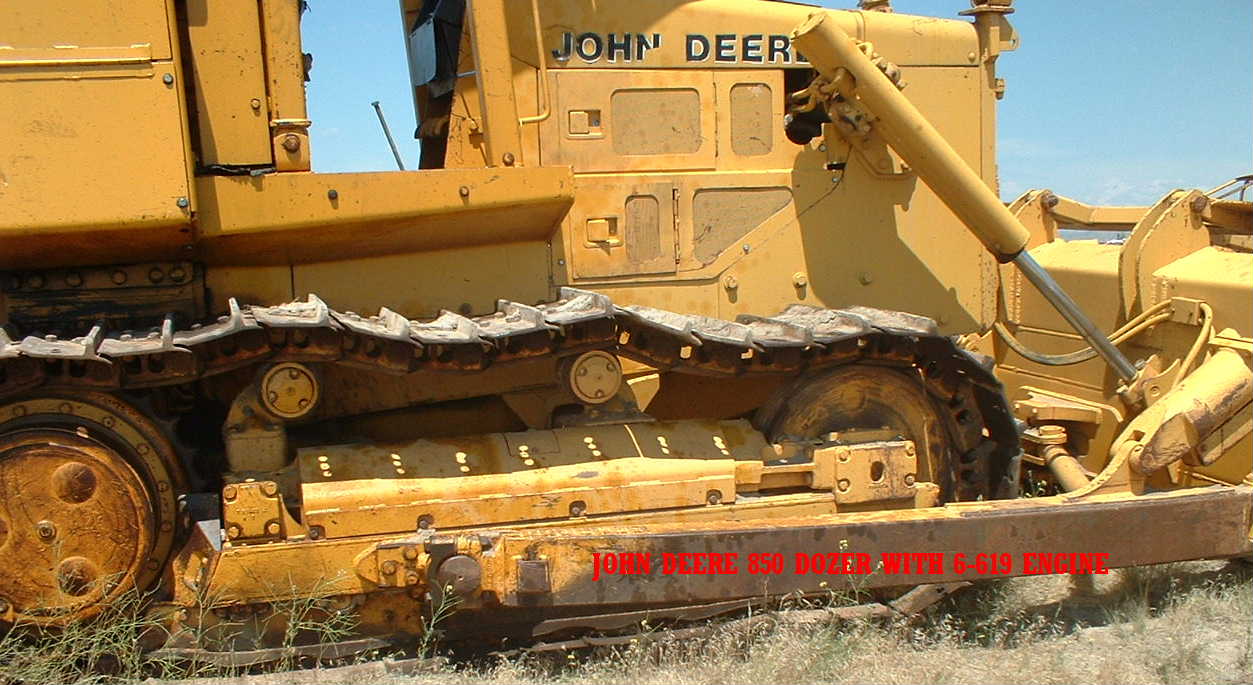

JD850 CAT D6C BOTTOM ROLLERS.JPG
BOTTOM ROLLERS FOR JD850 OR D6C

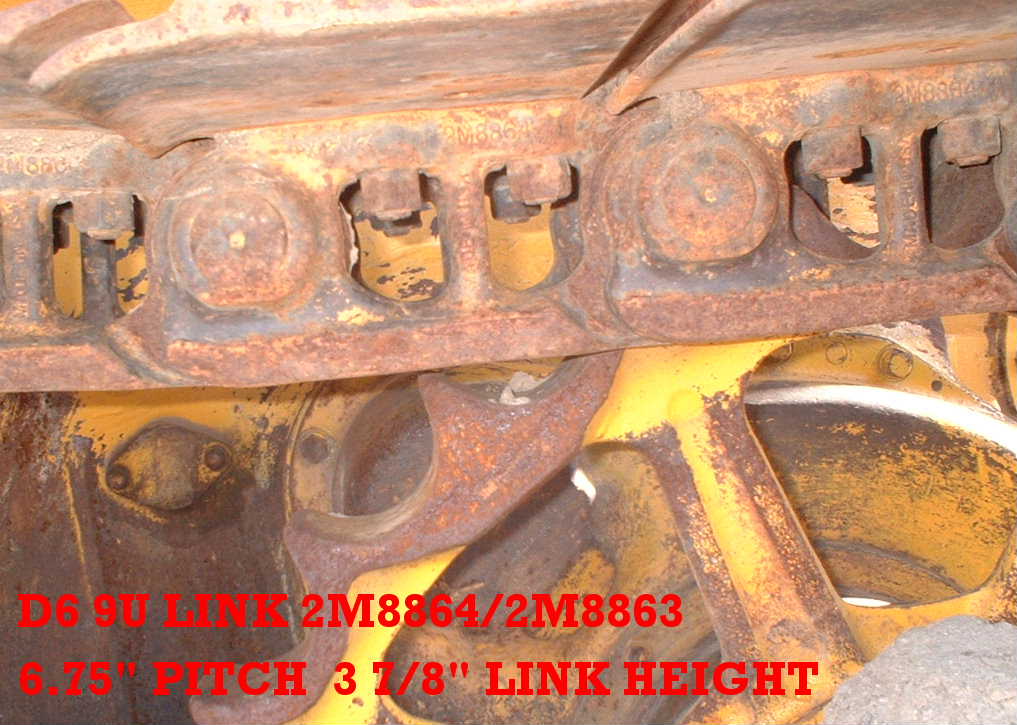

D6 9U TRACK GROUP ONE SIDE
ONE SIDE ONLY D6 9U TRACK GROUP
SEE NOTE 6 BELOW

SOLD

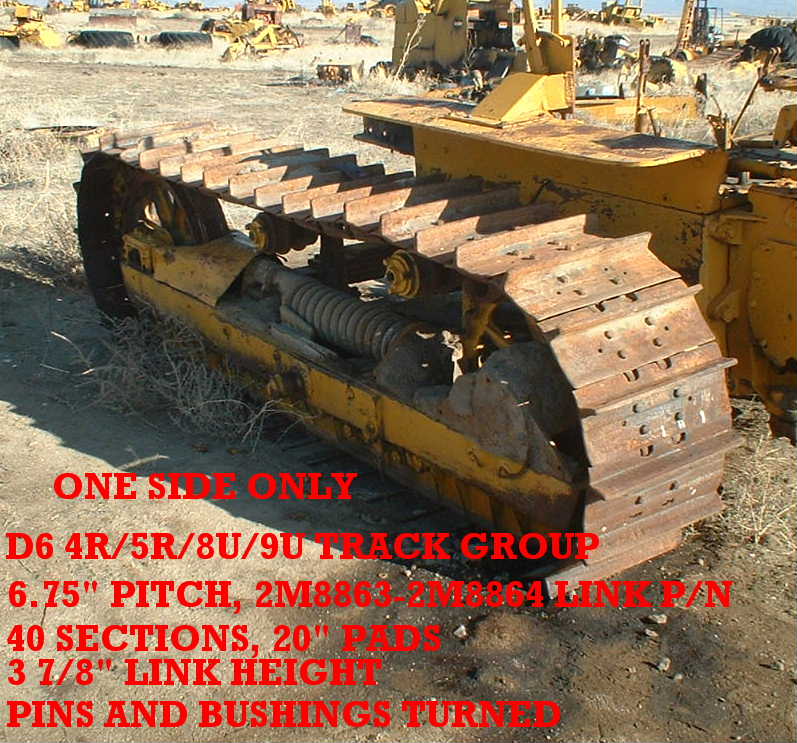

D6 9U TRACK GROUP ONE SIDE..
ONE SIDE 6.75 INCH PITCH
$700.00
SEE NOTE 6 BELOW

SOLD

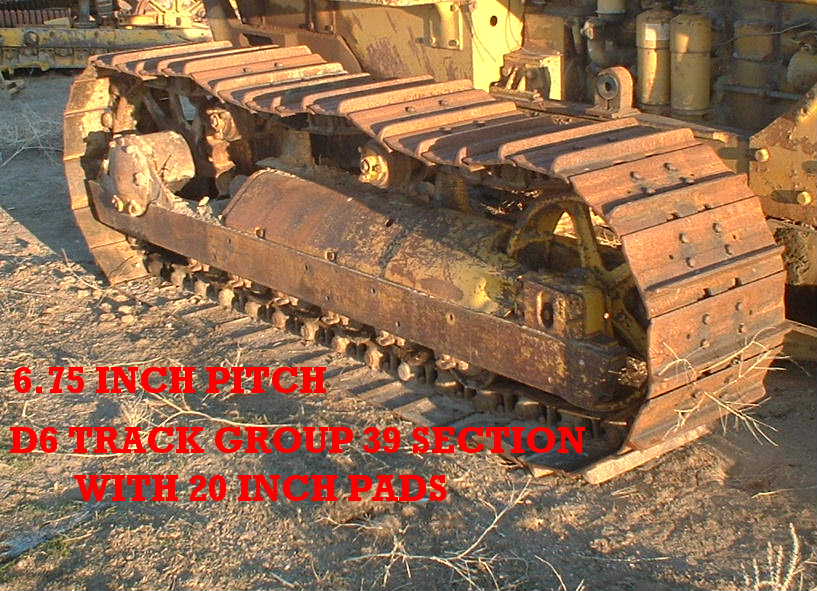

CAT D6 4R 5R 8U 9U TRACK RH
D6 4R 5R 8U 9U
6.75 INCH PITCH RH VIEW
39 SECTION EA
TWO SIDES
$1300.00 TOTAL
SEE NOTE 6 BELOW

SOLD

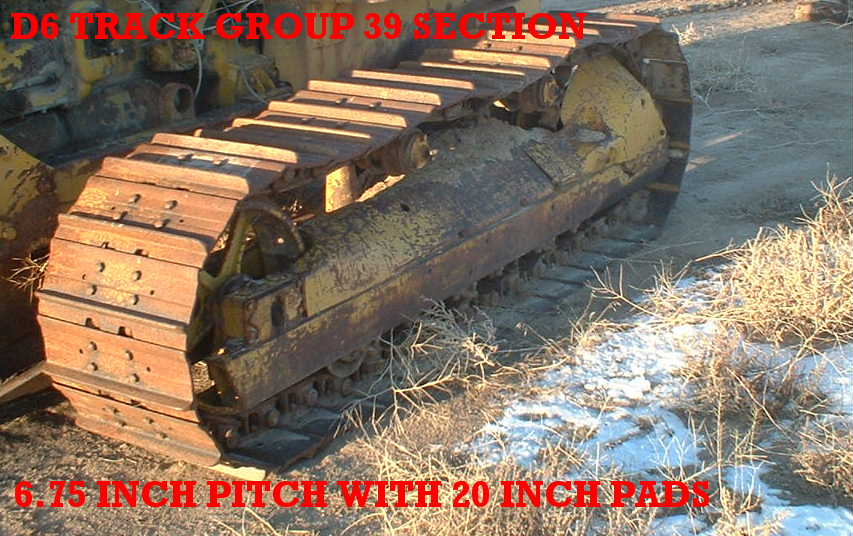

CAT D6 4R 5R 8U 9U TRACK LH
D6 4R 5R 8U 9U
6.75 INCH PITCH
LH VIEW
SEE NOTE 6 BELOW

SOLD

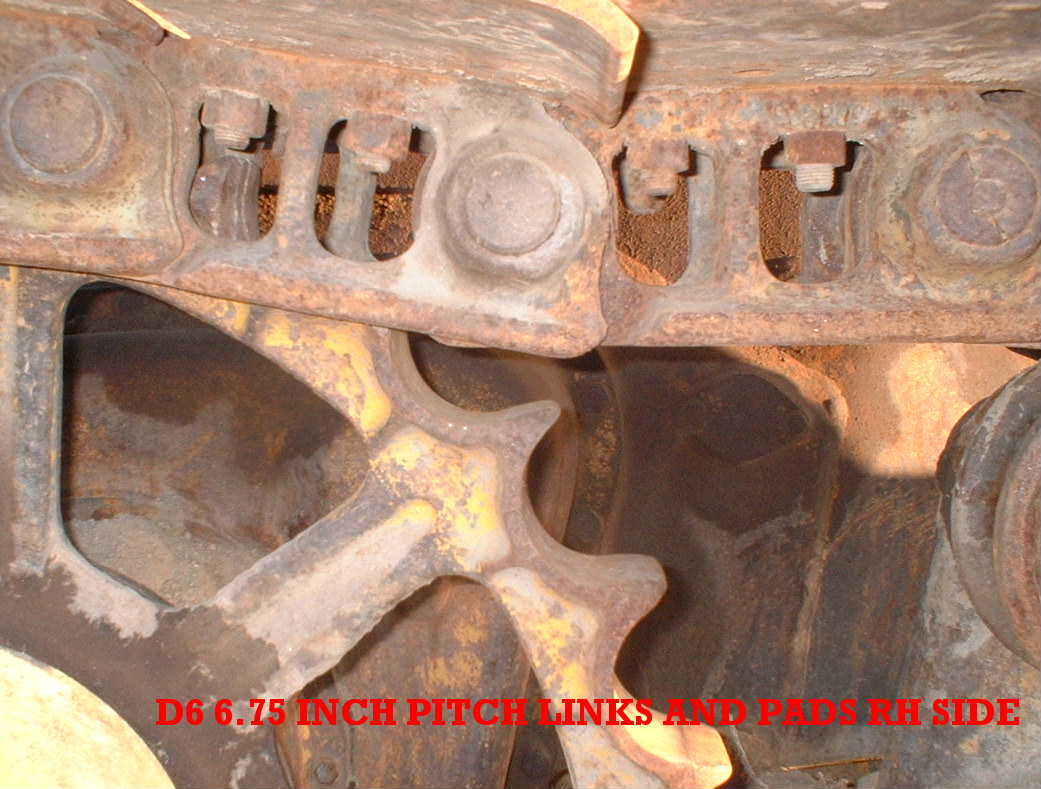

CAT D6 TRACK RH VIEW CLOSEUP
D6 4R 5R 8U 9U
RH VIEW
CLOSE UP
SEE NOTE 6 BELOW

SOLD

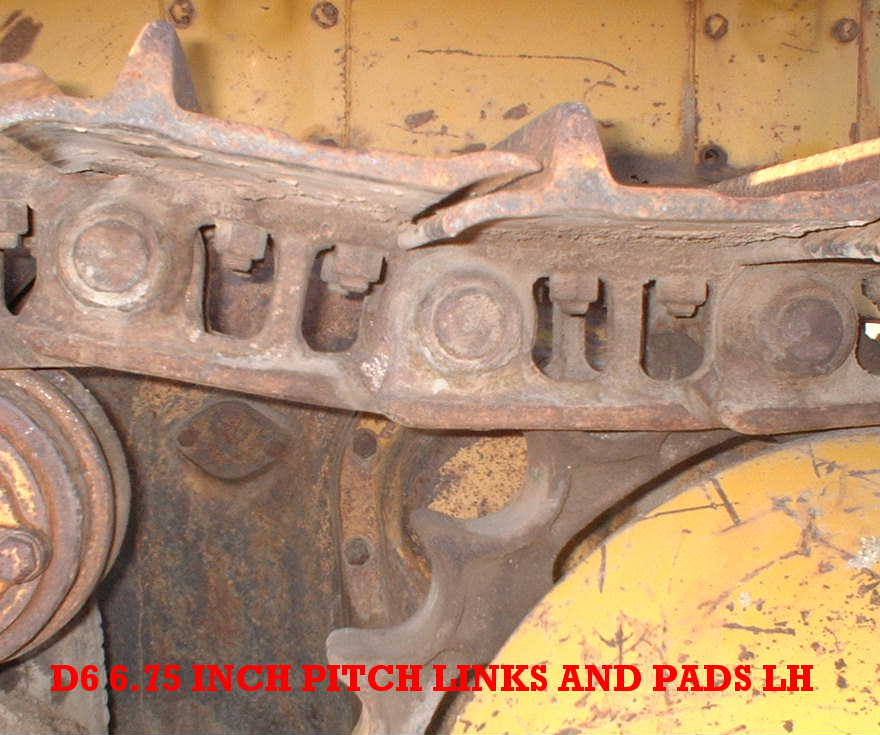

CAT D6 TRACK LH VIEW CLOSEUP
D6 4R 5R 8U 9U
LH VIEW
CLOSE UP
SEE NOTE 6 BELOW

SOLD


CAT D9G 34A
10.25" PITCH
and
IH TD24-241 TRACK


PIX SOON

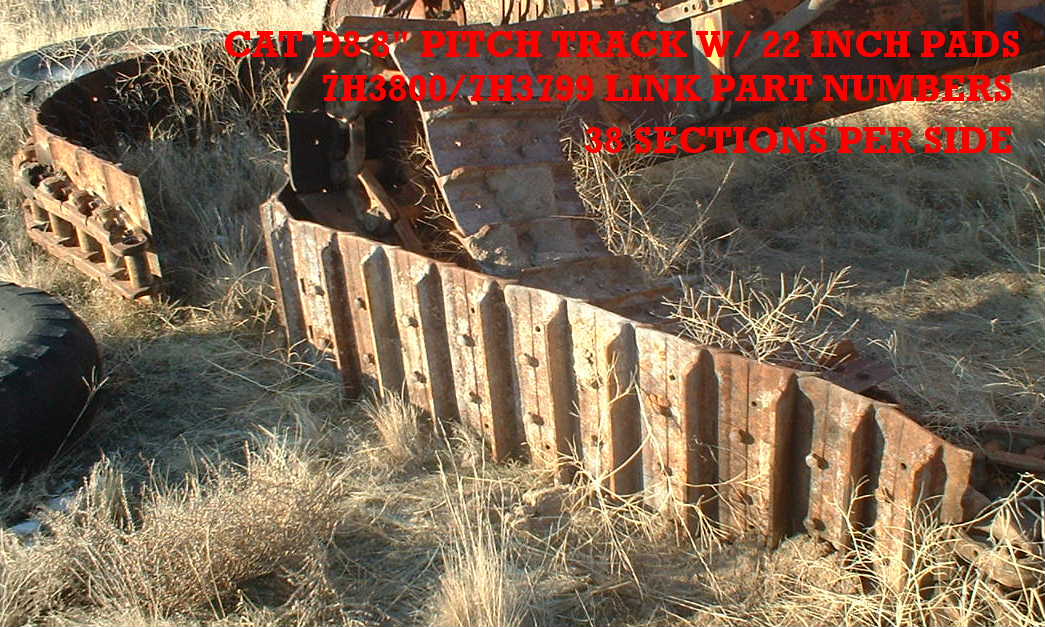

CAT D8 8 INCH PITCH TRACK
CAT D8 1H/8R/2U/13A/14A
8" PITCH  TRACK
$2000.00 TOTAL FOR BOTH SIDES


SEE NOTE 4 BELOW

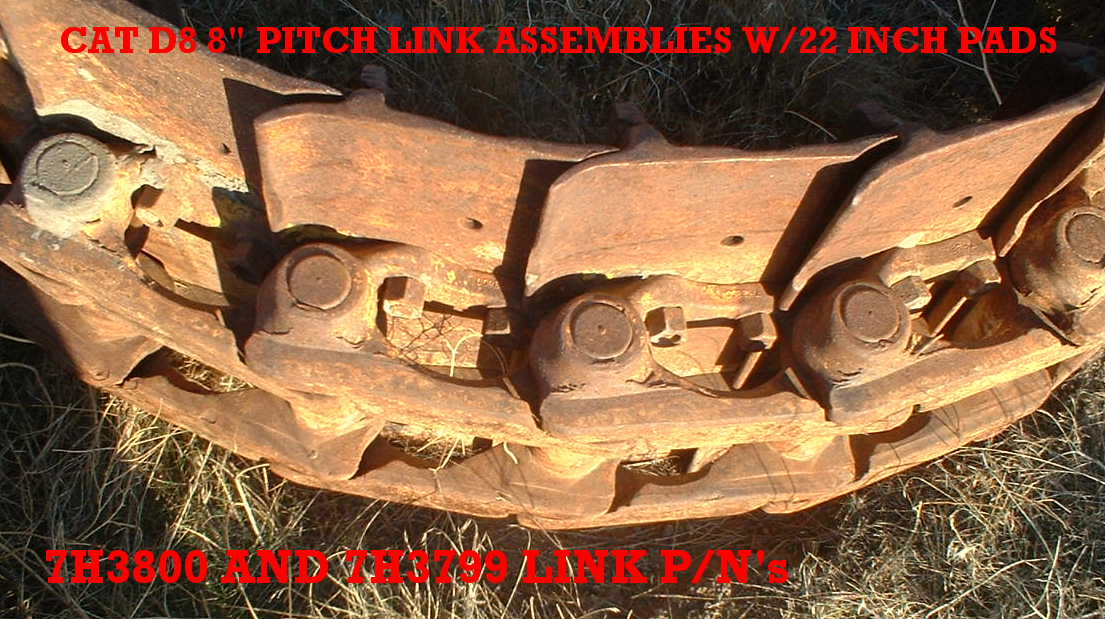

CAT D8 8 INCH PITCH LINK CLOSEUP
CAT D8 TRACK
FOR MODELS
1H-8R-2U-13A-14A-15A
LINK CLOSE UP

SEE NOTE 4 BELOW

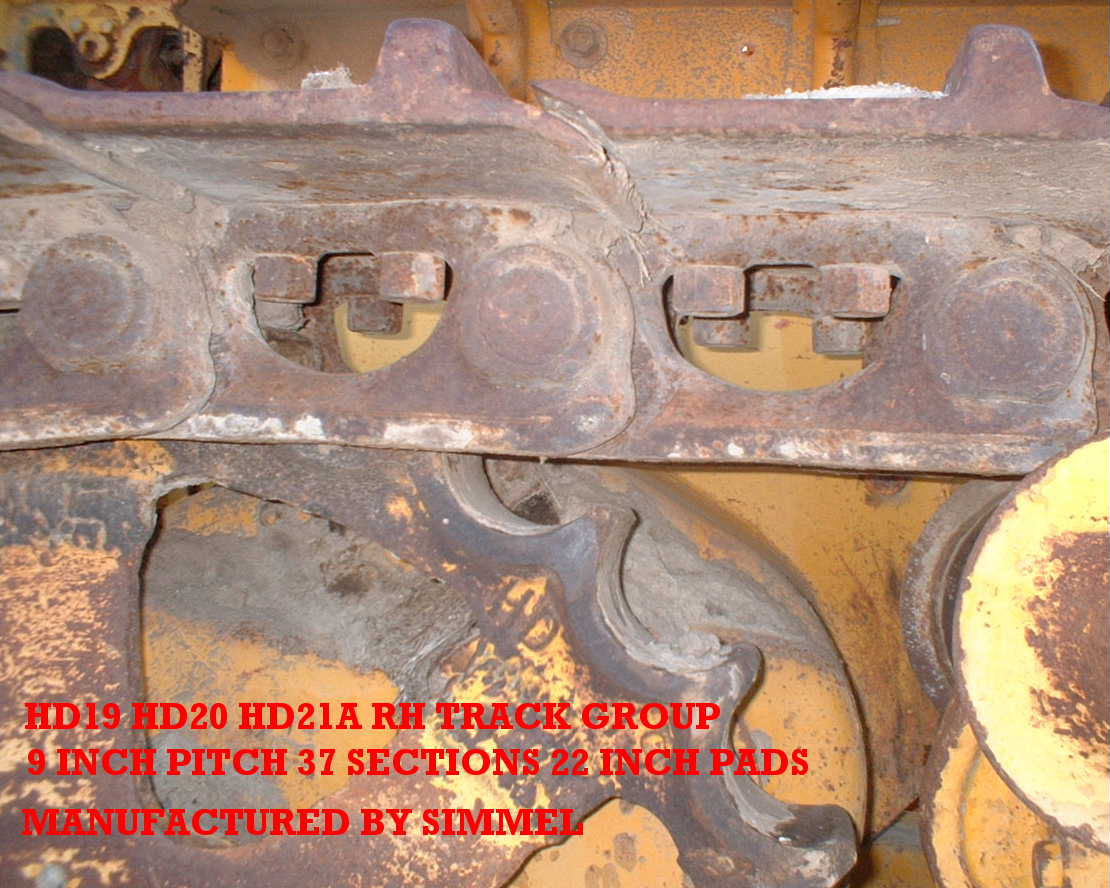

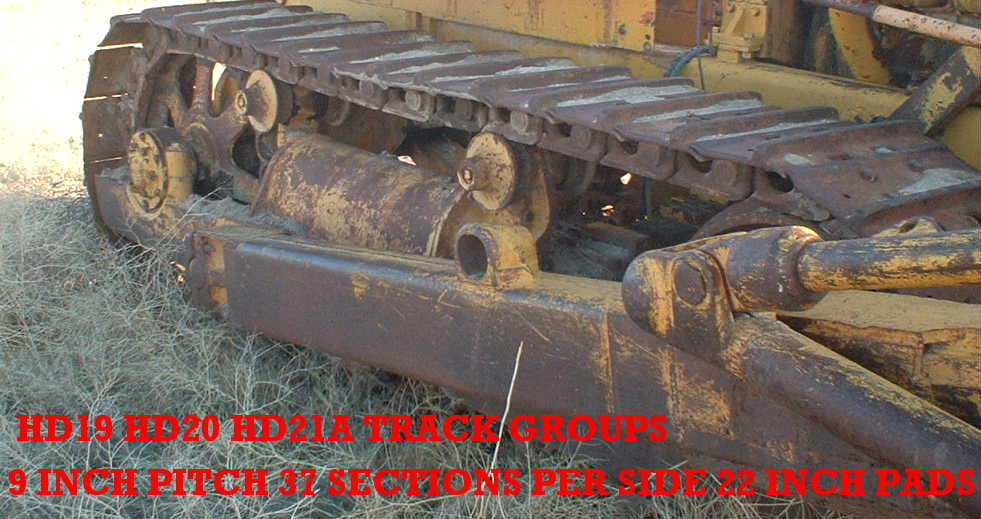

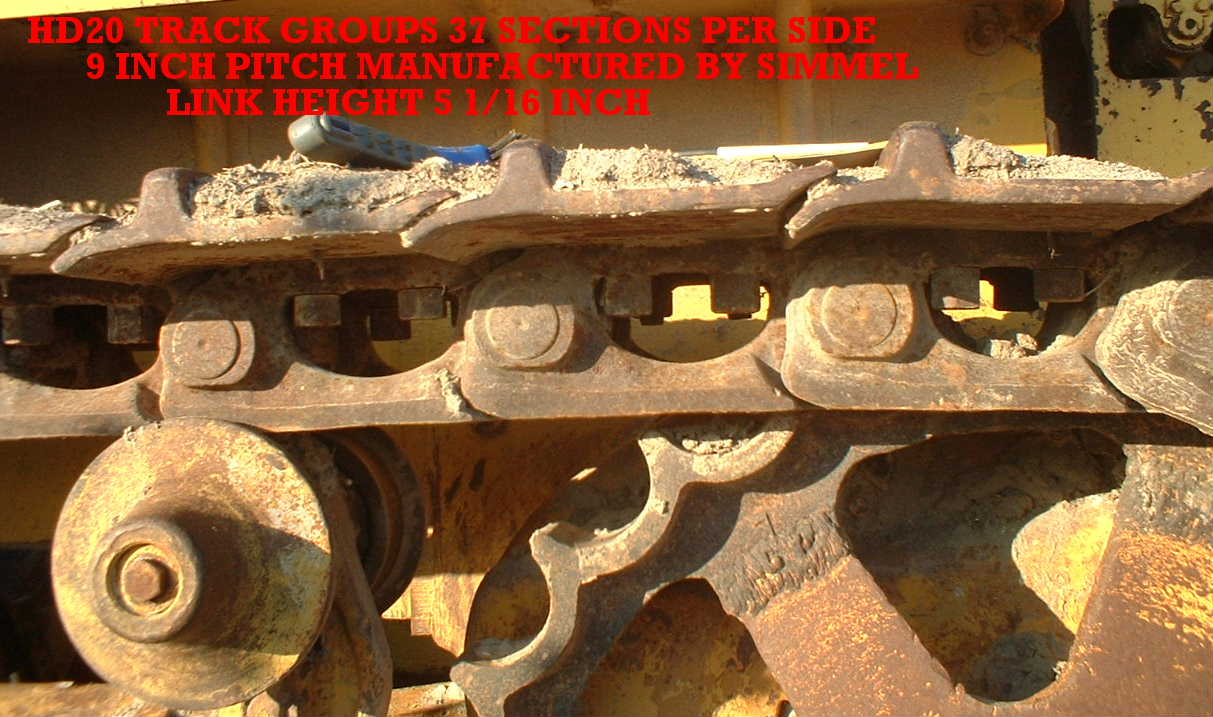

HD19 HD20 HD21 TRACK GROUPS

ALLIS CHALMERS HD19/20/21 TRACK
$2500.00 TOTAL FOR BOTH SIDES
SEE NOTE 5 BELOW
SOLD

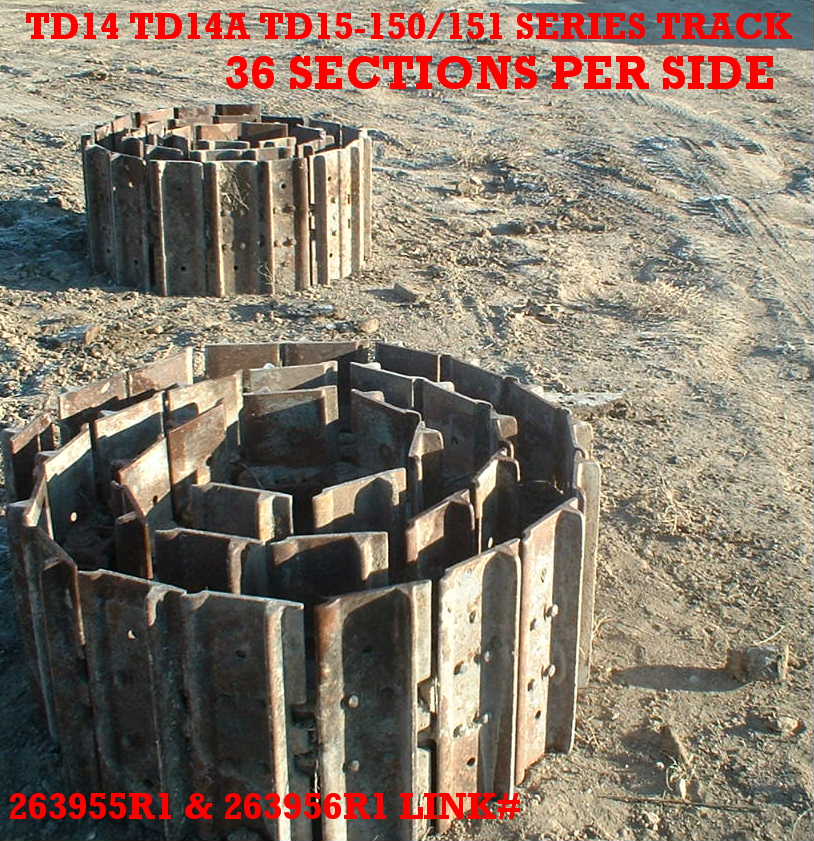

TD14 TD14A TD15 TRACK GROUPS
TD14 TD14A TD15 TRACK GROUPS
36 SECTIONS PER SIDE
2400.00 TOTAL FOR BOTH SIDES

SEE NOTE 3 BELOW

(LATE STYLE TD14A TRACK CAN BE USED FOR TD15B)

SOLD

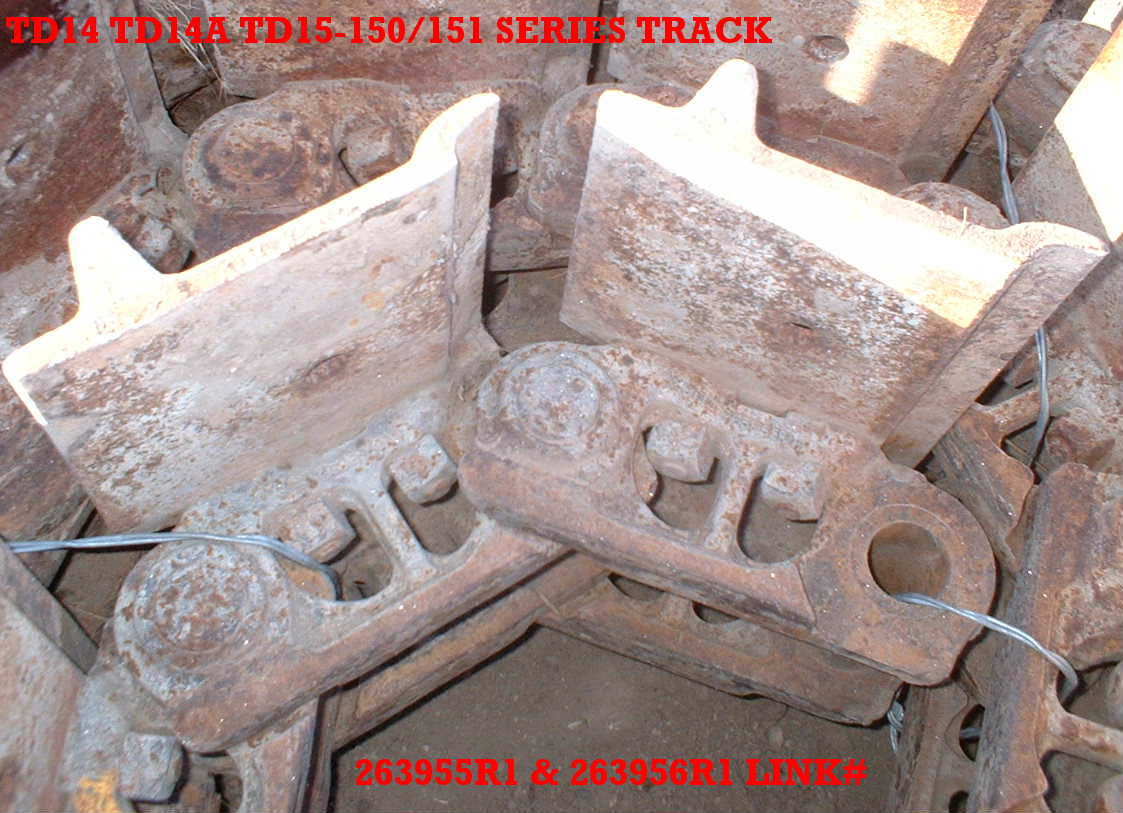

TD14 TD14A TD15 LINK CLOSEUP
TD14 TD14A TD15 LINK VIEW

SEE NOTE 3 BELOW

(LATE STYLE TD14A TRACK CAN BE USED FOR TD15B)

SOLD



MITSUBISHI 350 AND 380
JD 892DLC & JD270LC
BUCYRUS ERIE 325H & 325SH
HITACHI 270-300-330
CAT 235 235B 235C
BOTTOM ROLLERS

SEE NOTE 7 BELOW




MITSUBISHI 350 & 380
JOHN DEERE 890, 890A, 990
CATERPILLAR 235
P&H H1750
TRACK GROUPS

SEE NOTE 8 BELOW

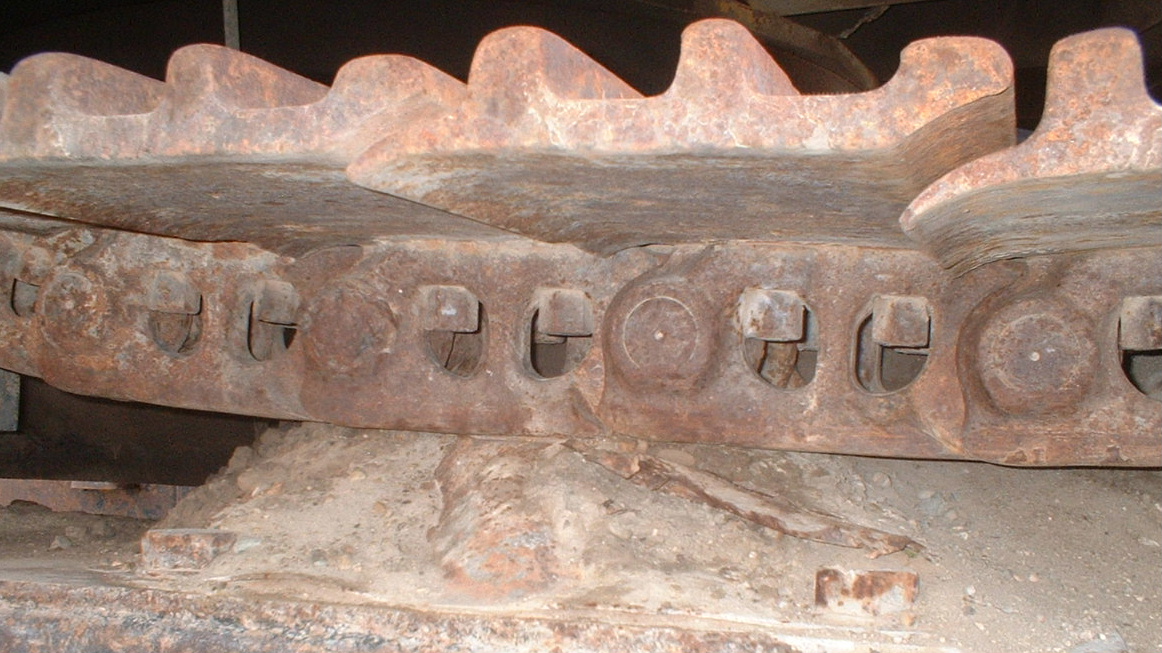

mitsubishi track.jpg
MITSUBISHI 380-2
ALSO FITS
CATERPILLAR
JOHN DEERE
P&H
BUCYRUS ERIE
HITACHI

SEE NOTE 8 BELOW

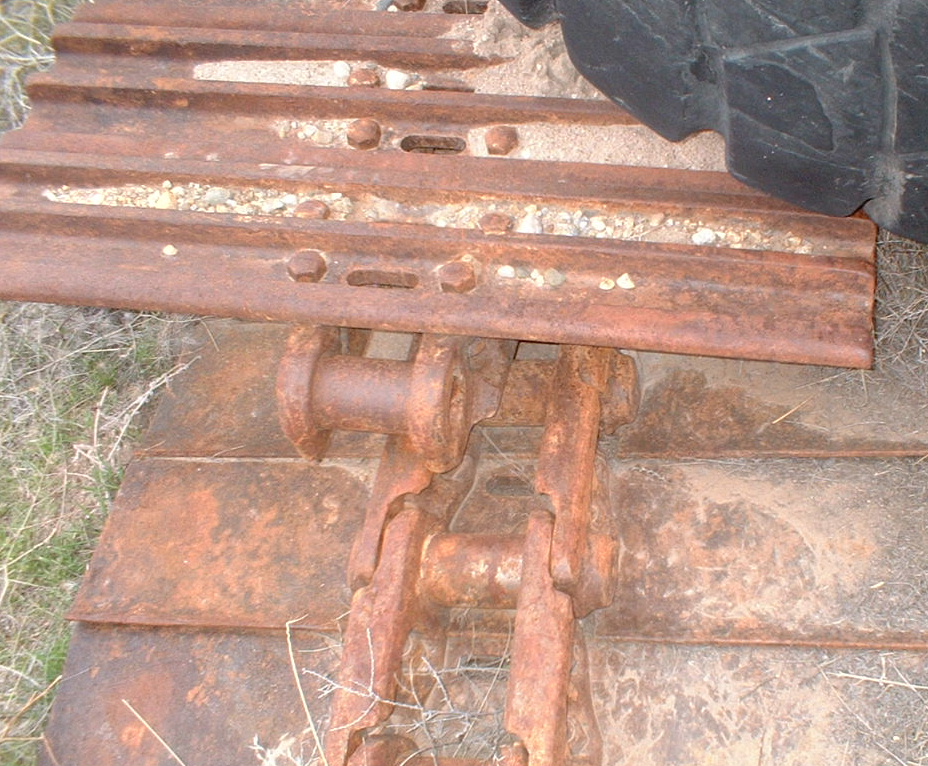

mitsubishi rh track

MITSUBISHI 380-2
ALSO FITS
CATERPILLAR
JOHN DEERE
P&H
BUCYRUS ERIE
HITACHI

SEE NOTE 8 BELOW

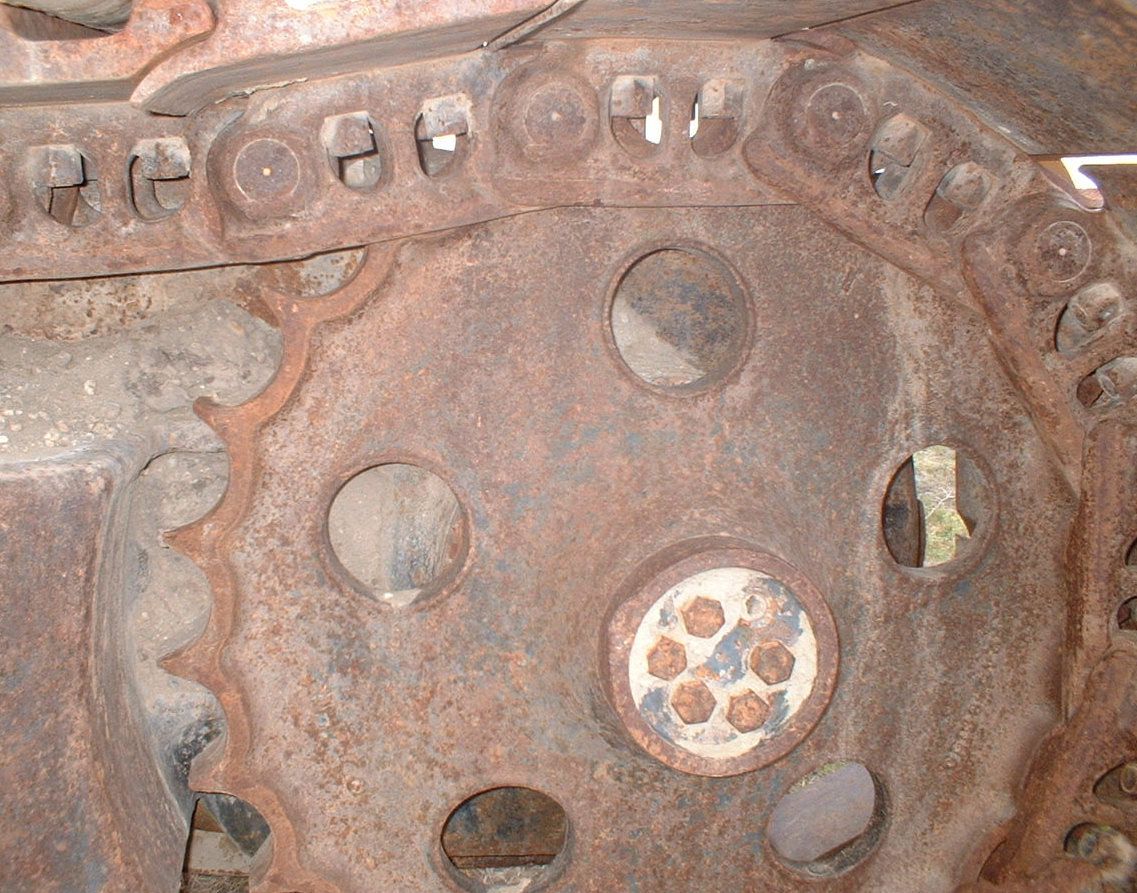

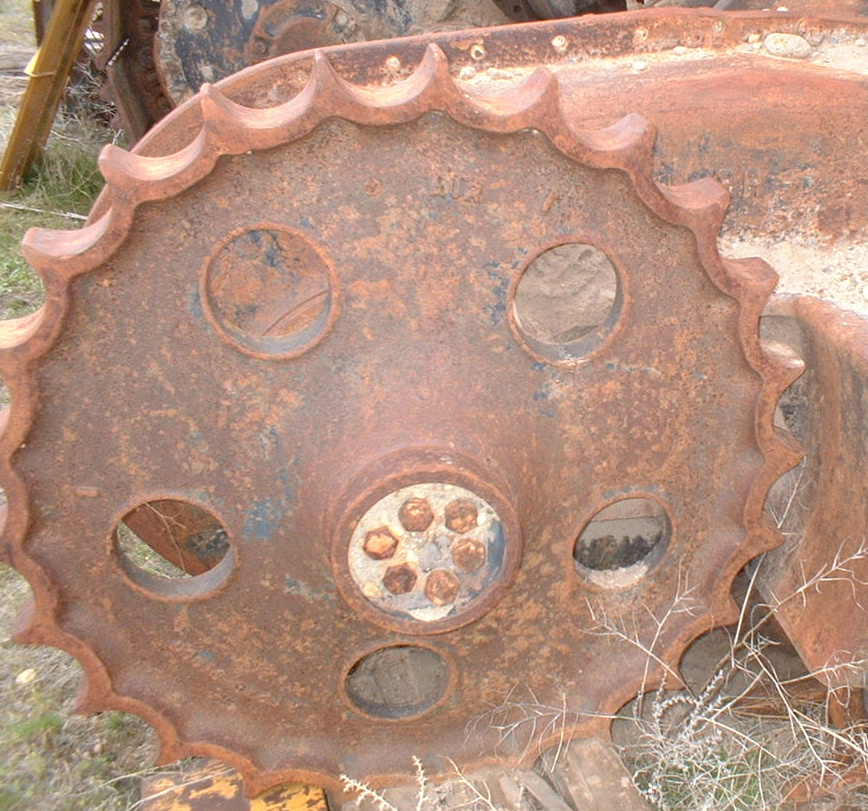

mitsubishi lh sprkt.JPG


MITSUBISHI 380-2
ALSO FITS
CATERPILLAR
JOHN DEERE
P&H
BUCYRUS ERIE
HITACHI

SEE NOTE 8 BELOW





MITSUBISHI 380-2
ALSO FITS
CATERPILLAR
JOHN DEERE
P&H
BUCYRUS ERIE
HITACHI

SEE NOTE 8 BELOW

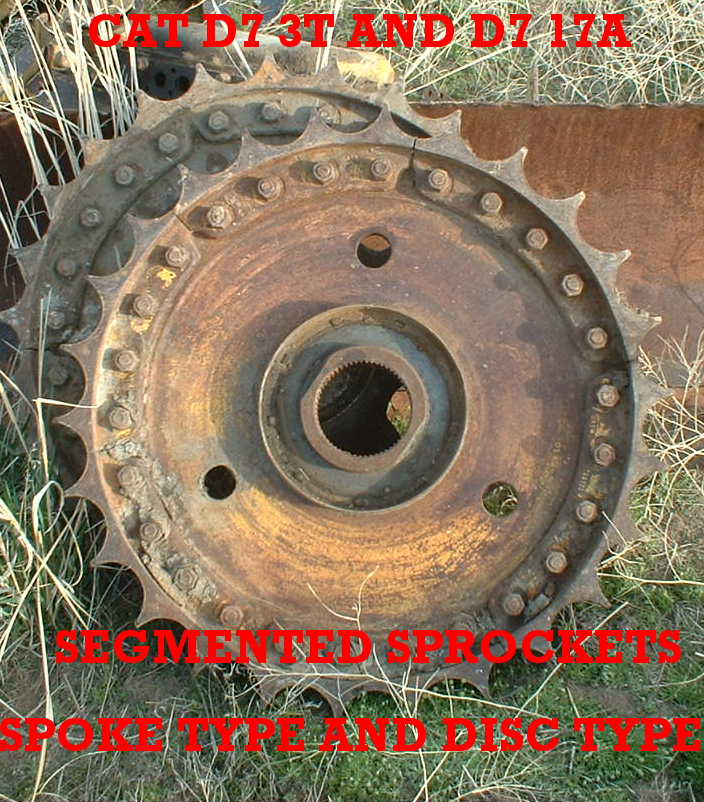

D7 SEGMENTED SPROCKETS
FOR D7 3T/4T/6T/17A
DISC TYPE & SPOKE TYPE SEGMENTED SPROCKET HUBS
WITH SEGMENTS
SOLD

SEE NOTE 11 BELOW

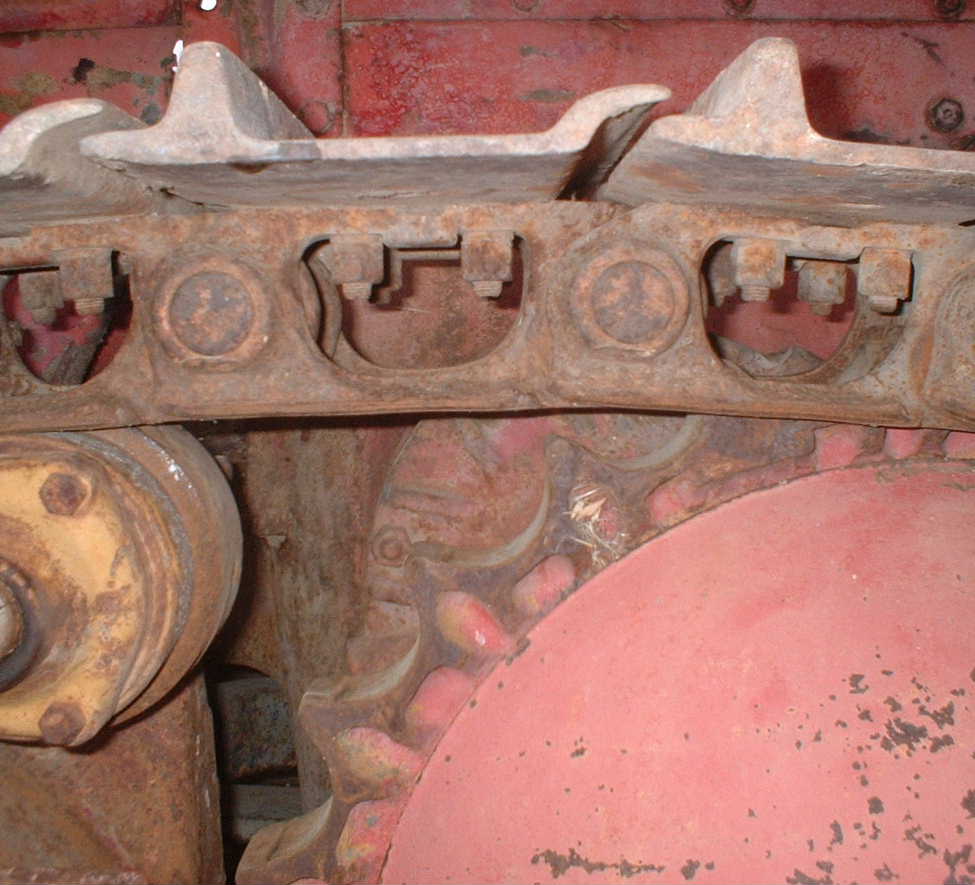

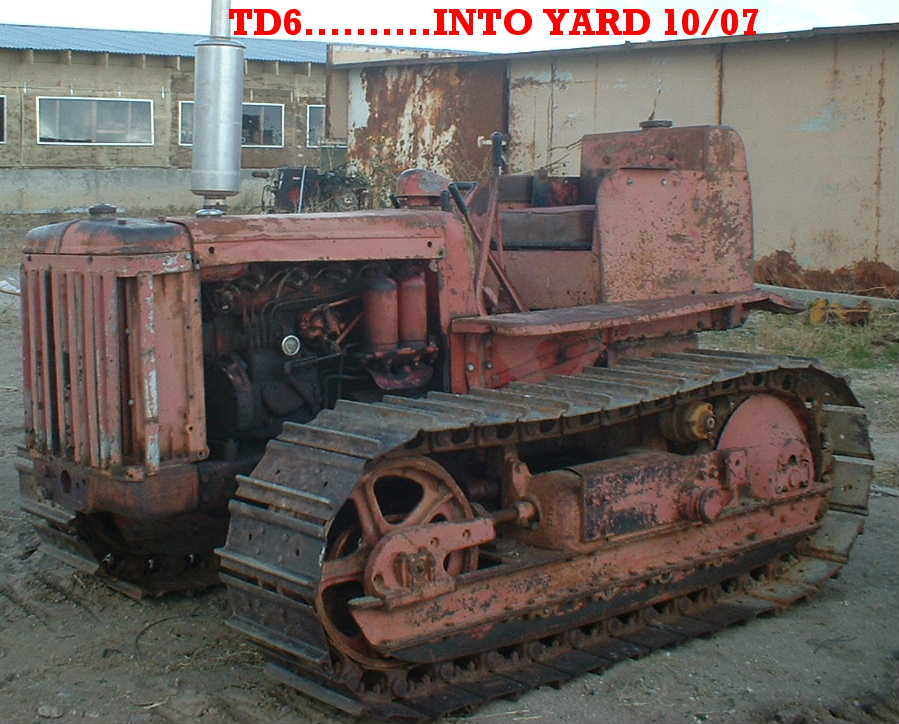

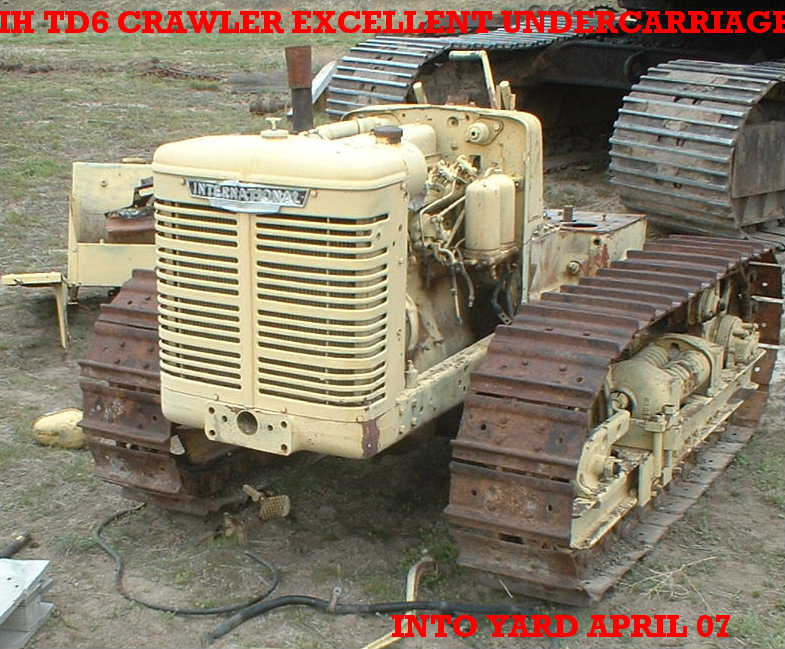

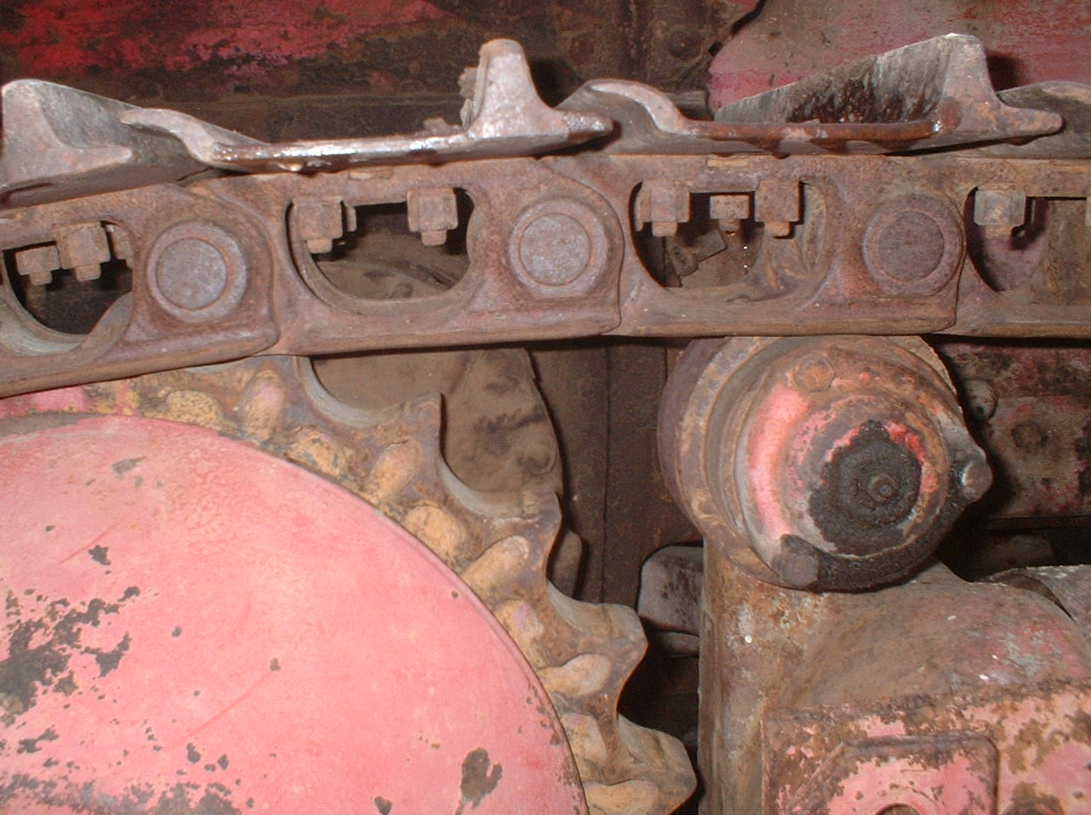

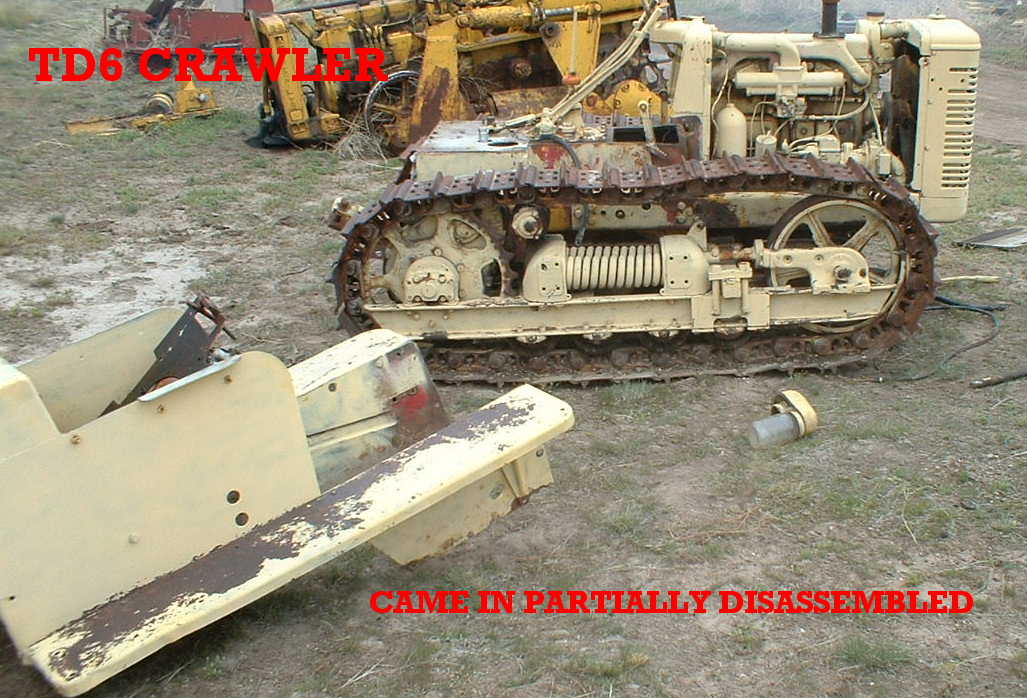

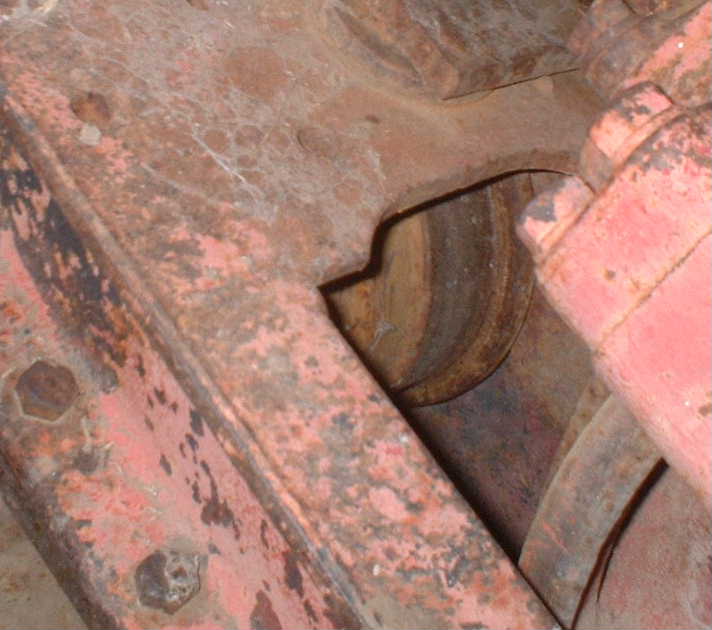

TD6 CRAWLER APRIL 07
IH TD6
Excellent Track, All rollers and sprockets sold

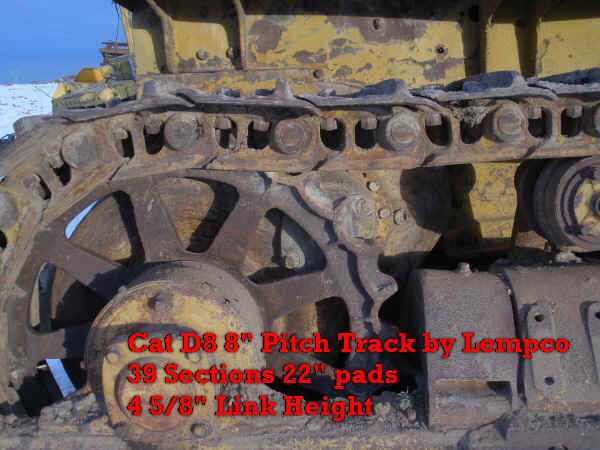

CAT D8
1H 8R 2U 13A 14A 15A
8" PITCH TRACK
TWO SIDES
2,500 TOTAL

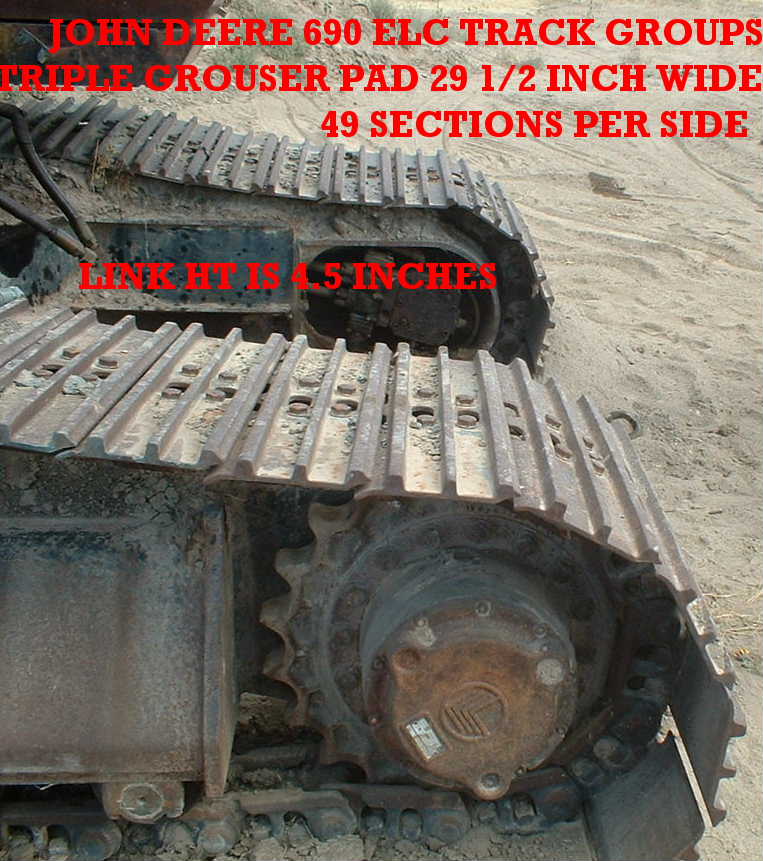

JD 690 ELC TRACK GROUPS.JPG
JD 690 ELC TRACK
Fit Many Models
See note #12

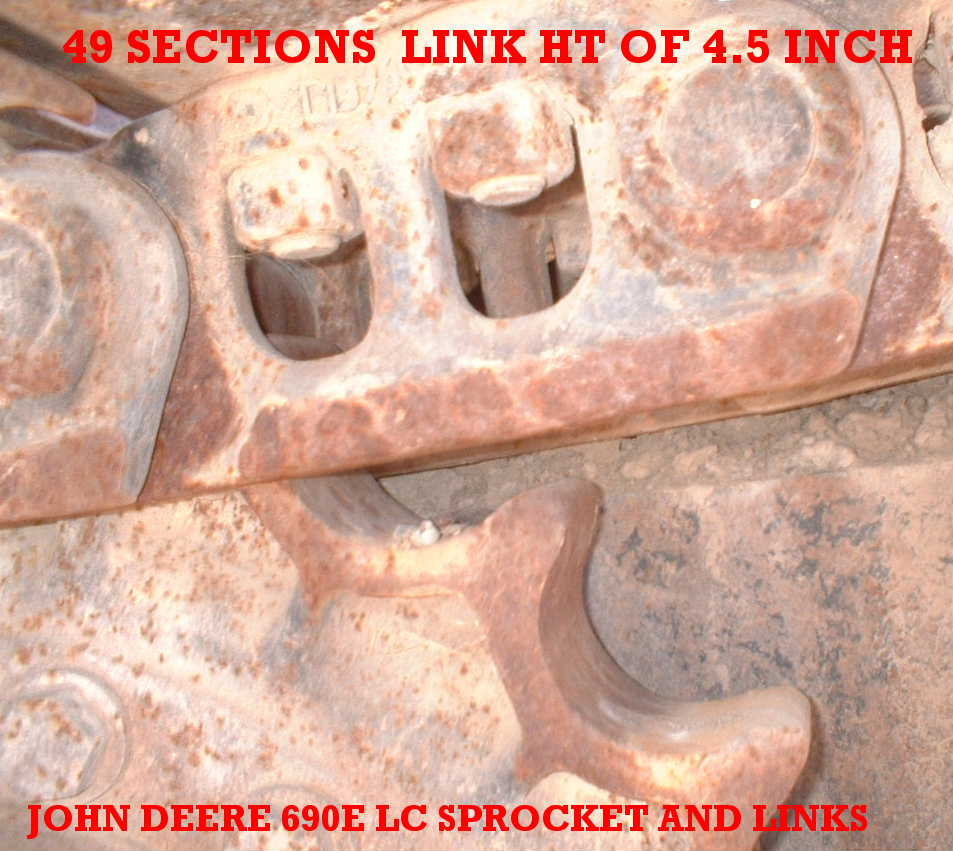

JD 690 ELC LINKS AND SPROCKET RH.JPG
JD 690E LC
RH LINKS and SPROCKET
7.5 inch pitch (190mm)
See note #12

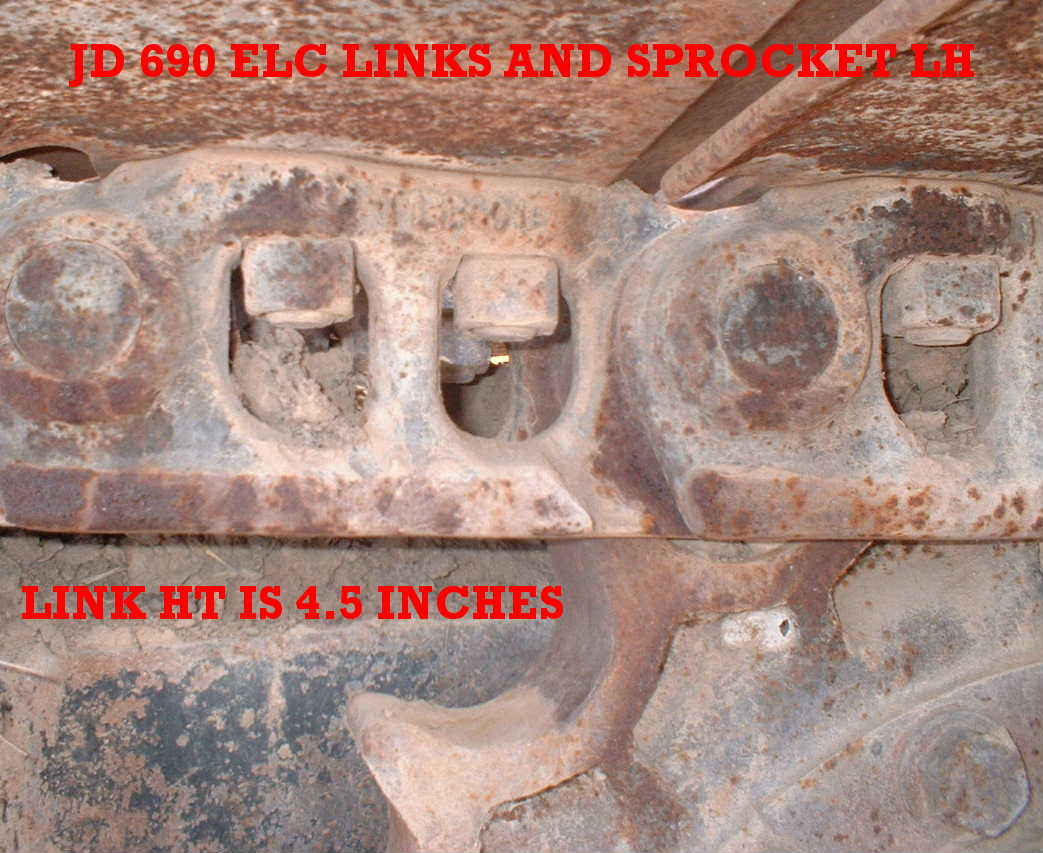

JD 690 ELC LINKS AND SPROCKET LH.JPG
JD 690E LC
LH LINKS and SPROCKET
See note #12

BE300H
 BOTTOM ROLLERS

ALSO FIT
DRESSER
LIEBHERR
SUMITOMO
JCB
INSLEY
FIAT
HITACHI
CASE
KOEHRING
SAMSUNG
SEE NOTE 9 BELOW


BUCYRUS ERIE
BE300H
TRACK
ALSO FITS

CATERPILLAR
CASE
P&H
KOEHRING
UNIT CRANE
JOHN DEERE

SEE NOTE 10 BELOW

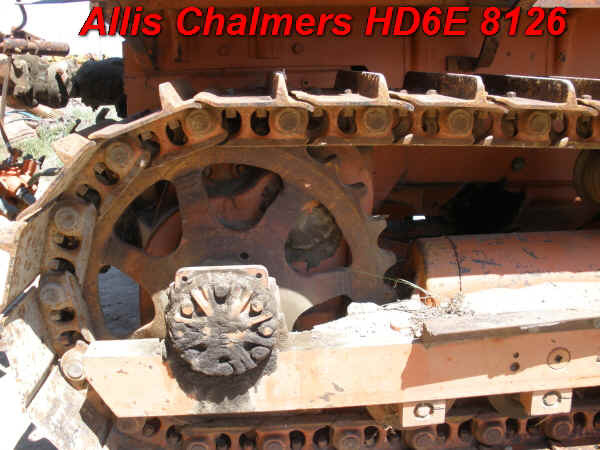

HD6E TRACK.JPG (213218 bytes)
HD5 HD6
EXCELLENT TRACK
LINK HT = 3 9/16
NEW HT = 3 11/16
HD6E 8126.JPG (176120 bytes)
HD5 HD6
37 SECTIONS
PER SIDE (2)

1500.00 Total

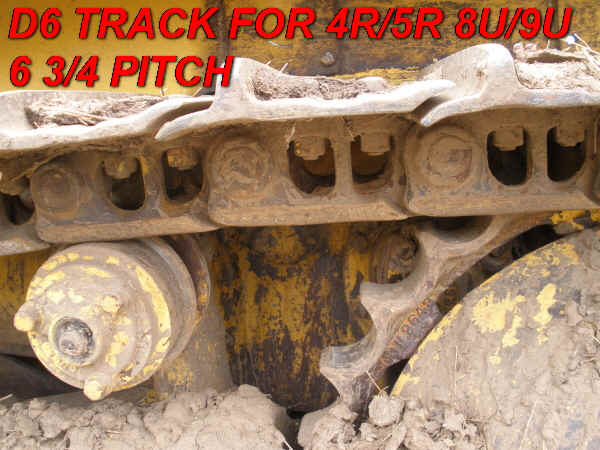

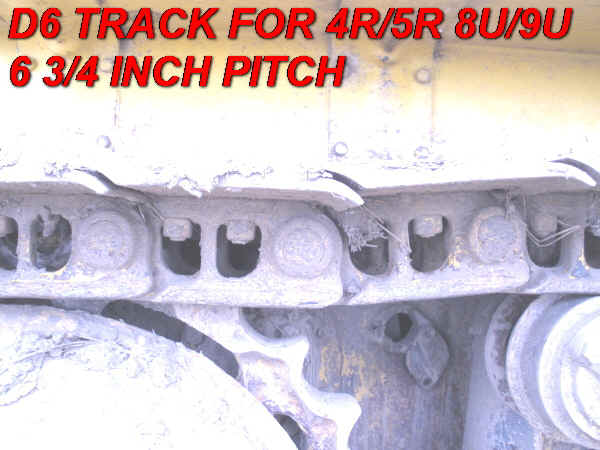

CAT D6TRACK6.75.JPG (191196 bytes)
RH TRACK
D6 4R 5R 8U 9U
6.75 INCH PITCH
40 SECTIONS PER SIDE
18 INCH PADS
3 15/16 LINK HEIGHT
2S5960/2S5959 LINK P/N'S
(NEW HEIGHT IS 4.00)
2,000 TOTAL for
BOTH SIDES
CAT D6TRACK 6.75.JPG (240790 bytes)
LH TRACK
D6 4R 5R 8U 9U
6.75 INCH PITCH
40 SECTIONS PER SIDE
18 INCH PADS
3 15/16 LINK HEIGHT
2S5960/2S5959 LINK P/N'S
(NEW HEIGHT IS 4.00)
2,000 TOTAL for
BOTH SIDES

FIAT ALLIS FL4E TRACK GROUPS
FIAT ALLIS FL4E TRACK (3) SIDES
$1200.00
TOTAL

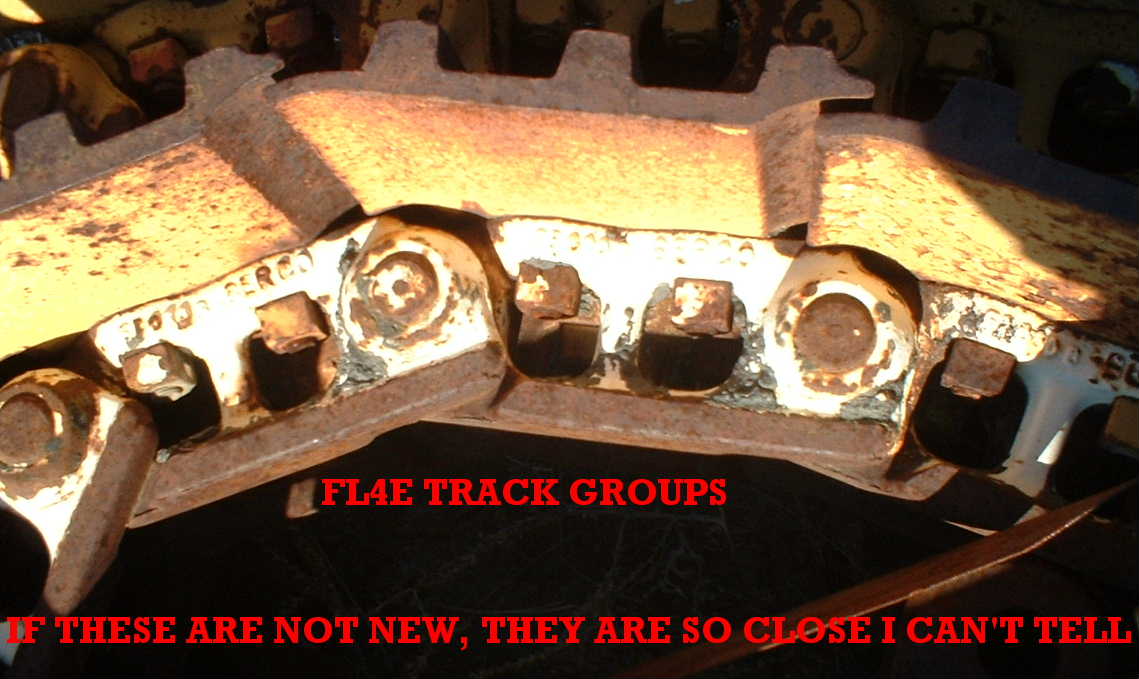

FIAT ALLIS FL4E TRACKGROUPS
CLOSE UP OF FL4E TRACK GROUPS

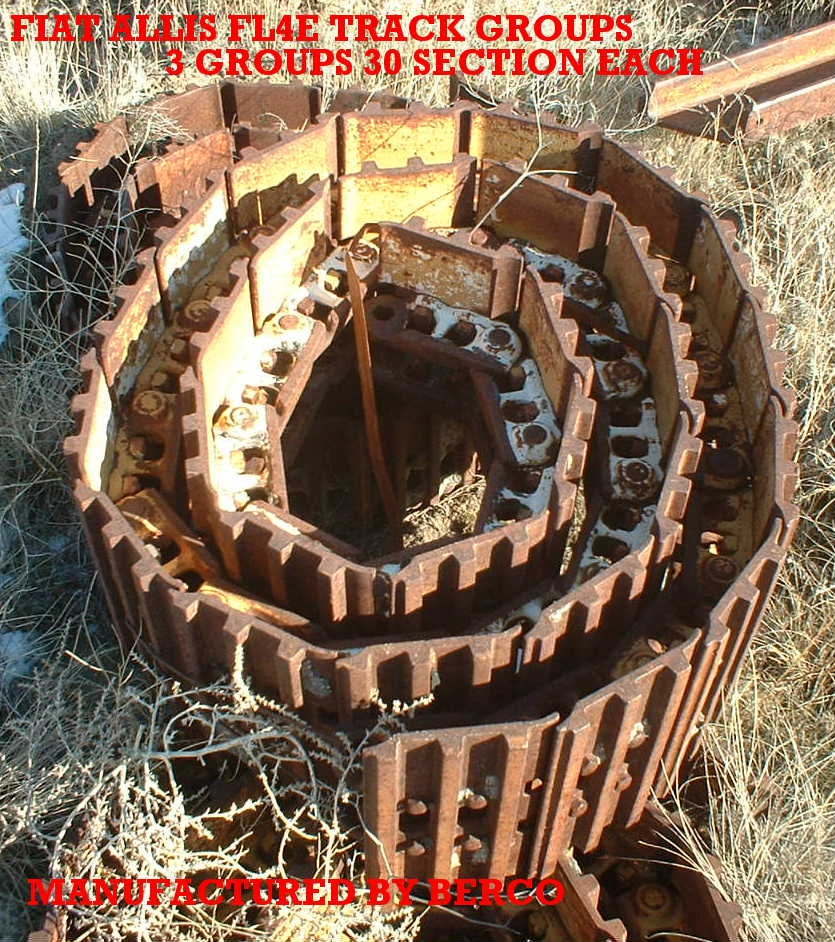

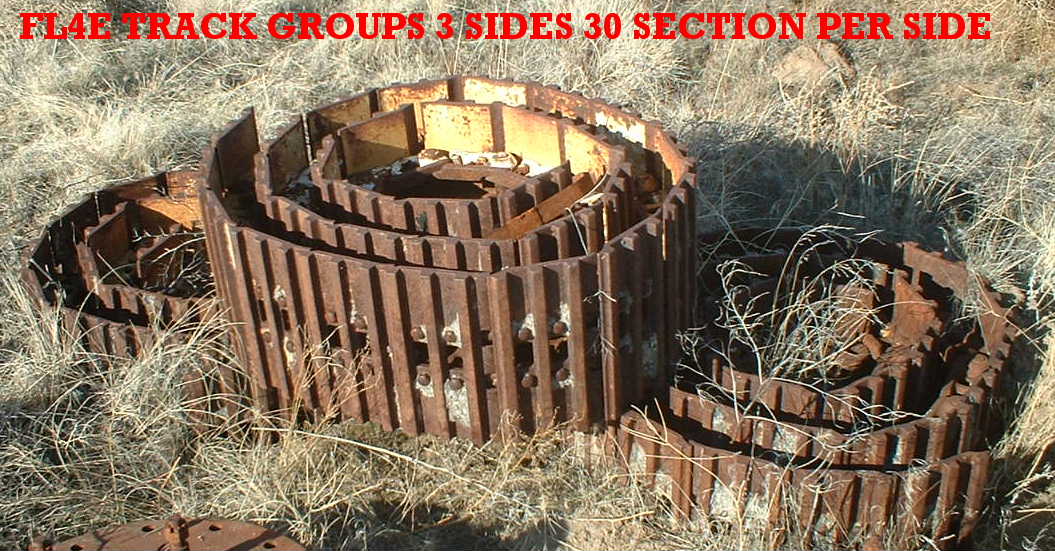

FIAT ALLIS FL4E TRACK GROUPS 3
FIAT ALLIS FL4E TRACK GROUPS 3 SIDE AVAILABLE
30 SECTION/SIDE

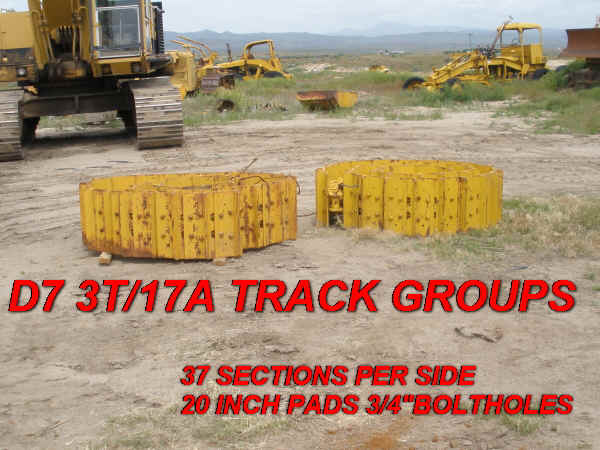

CAT D7 3T 17A TRACKS.JPG (231976 bytes)
D7 TRACK
FITS D7'S W/ 8" PITCH
D7 7M, D7 3T, D7 17A'S

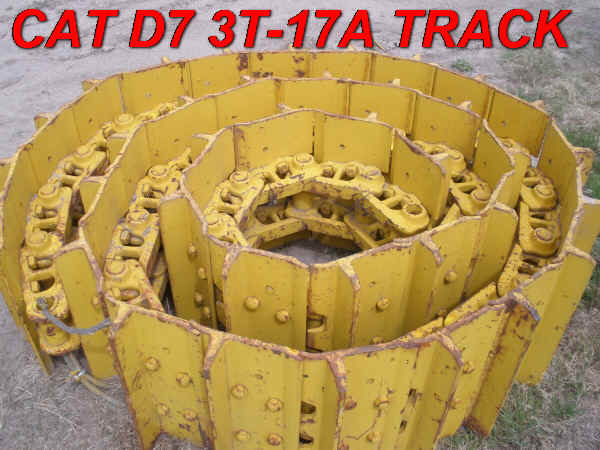

CAT D7 3T 17A TRACK.JPG (232541 bytes)
D7 TRACK NEW
37 SECTIONS PER SIDE
20 INCH PADS
3/4 INCH BOLT HOLES

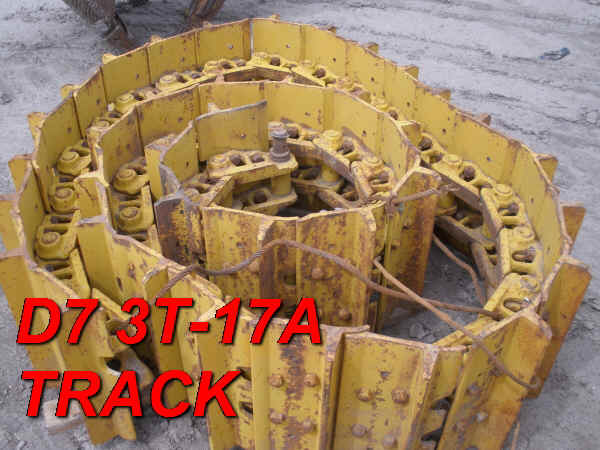

CAT D7 3T 17A TRACK GROUP.JPG (226429 bytes)
D7 TRACK NEW
37 SECTIONS PER SIDE
20 INCH PADS
3/4 INCH BOLT HOLES
arrived june 2010





NOTES AND FURTHER INFO:

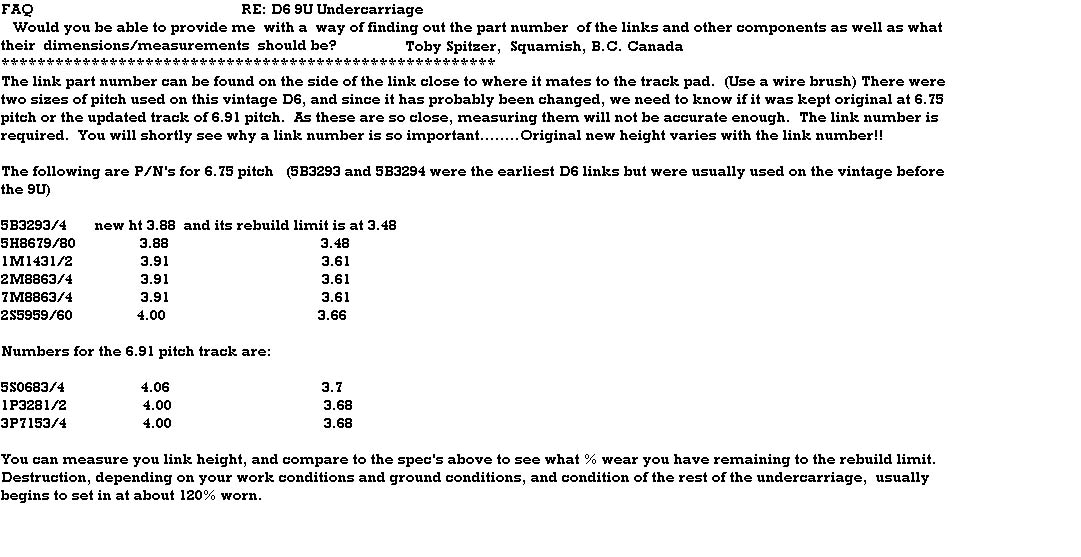

        To learn more about how undercarriage components work together, and how to measure your various parts go to: (CLICK HERE)

            and be sure and read the "HINTS" at the bottom of that web page.

1. P&H1200 AND P&H1250 used the same pitch links and rails (316mm or 12.44" pitch) and were the same as used on several other machines. They used track pads with track bolts of 1 1/4" diameter.  Our track was originally 51 sections, one section was cut on removal of track (amateurs!)  Other models use fewer number of sections per side.  Other manufacturers using the same track are:
        Orenstein & Koppel models RH60, RH75, RH75A, RH75C, SH400
        Poclain-Case models 600CK, 610CK, EC1000, 1000CK

2. CATERPILLAR MODEL D2 rails and track were also used on the earlier Cat 15 and Cat 22 models.  The links have a 6" pitch.  When changing pads and/or rails be aware that different bolt hole sizes were used.  Check what you are doing by verifying link numbers and refer to your parts manuals for verification.  We currently show two options above for your D2 track needs.  One pair is links/rails only with no pads, and the other includes pads.

3.  INTERNATIONAL TRACK FOR IH TD14 TD14A TD15 150 OR 151 SERIES CRAWLERS.  This is the late style track, much heavier duty that originally designed for the early TD14's.  As you can see from the close up picture, they are in excellent condition.  Some customers have put this style of track on their IH TD15B crawlers using standard duty track.  It is the same pitch, will fit into the same dimensioned roller flanges and holds up well.  The only difference we can note is that the bushings on the above track have a slightly smaller OD.  This means that while they will work for the standard TD15B track, without the need for changing sprockets, they will not hold up as long as the track designed for the 15B's.
4. CAT EARLY D8 TRACK FOR MODELS 1H, 8R, 2U, 13A, 14A, 15A.  There are 38 sections per side with 22 inch pads.  Pins and bushings have been recently turned and show to have very little time on them since the turn.  Link part numbers are 7H3800 and 7H3799 which, when new would have measured 4.88 in link height.  These measure: RH side 4 5/8" and LH side 4 9/16".  Pads have been re-grousered and plates are solid, not bending on corners or edges.

5. ALLIS CHALMERS HD19 HD20 HD21A TRACK GROUPS.  These particular track are in excellent condition.  They were manufactured by Simmel.  Like Berco, Trek, and aftermarket manufacturers, they often made the links beefier than original.  These track links, when supplied by Allis Chalmers were originally 4.88 in height when new.  The track shown on this machine, made by Simmel, measure 5 1/16 inch in height.  Pins and bushings are excellent with no measurable stretch or internal pin and bushing wear.  They are 9 inch pitch (228.6mm), 37 sections per side and equipped with 22 inch pads.
        P&H MODEL H2500 My education was enhanced two years ago when a customer from Washington state called up regarding this type of track and told me it was also used on his P&H H2500 excavator.  He only needed one side, so we pulled one from an HD21A that he liked and he put it on his excavator.  The width of his rails fit his roller flanges perfectly and he was back at work, giving his H2500 several more production years.

6. CATERPILLAR D6 4R, D6 5R, D6 8U, D6 9U D6B 37A & D6B 44A TRACK.  The early D6 crawlers used 6.75 inch (171.5 mm) pitch track, later replaced by 6.91 inch pitch track.  The 6.91(175.5mm) inch pitch track was an optional track that could be fitted to the same machines. The D5 machines used the 6.91 pitch track.  Link numbers are very important.  To read further discussion on this point, see (Click Here)  The 6.91 pitch track was also used on the John Deere model 750 crawlers.  Individual parts, like links or pads directly interchange between the JD750 and the 6.91 pitch supplied by Caterpillar.  Determining which pitch you have is important.  Different sprockets are required for different pitch track.  If your sprockets are good, or you want to rebuild them and re-use them, be sure that the tracks you are buying are compatible with your sprockets.  We show, above in the picture gallery, 3 sides of 6.75 inch pitch track.  The single side available is the best of the 3 sets.  It has link numbers of 2M8863 and 2M8864 and the links measure 3 7/8 inch in height.  The two matched track groups had a link number of 5B3294 and 5B3293 and measure 3 11/16 inch on the RH side and 3 3/4 inch on the left hand side.
        We also show the 955 60A track groups, which are also 6.75 pitch using the latest Cat links of 2S5959 and 2S5960.  A 40 section side of track links corresponds with the link assembly part number of 2S7579.  This track was also used on the Cat track loader model 977 20A ser#20A1-2508 (which used 45 sections of the same track) and the earlier #6 Traxcavator model 10A.  A more thorough list of machines these links and tracks fit is:
31A,32A,37A, 44A, 56A, 57A,37H, 38H, 2H, 4R, 5R, 8U, 9U, 20A1-2508, 12A5793-Up, 26A, 45A, 51A, 10A, 60A, 72A, 77A, 93A, 61H, 31J, 57J, 71J, 85J1-4671, 85J4672-Up.

7. MITSUBISHI, CATERPILLAR, HITACHI, JOHN DEERE, BUCYRUS ERIE, LIEBHERR, P&H, BOTTOM ROLLERS.  The Mitsubishi 380-2 excavator we are parting out has good bottom rollers which interchange with a lot of other models and machines.  These are the same rollers as used by Caterpillar (Cat P/N 8E4579 or earlier P/N of 7T6396) on some of their 235, 235B, and 235C excavators.  John Deere P/N AT201169 used them on their JD892ELC, 270LC, and the JD892DLC.  P&H H1750 used them on their excavator.  Bantam-Koehring used them, P/N 3018.57768, on their C366, 466E, 566, 6640, K625, and K625L models.  Liebherr used them on many models, their P/N was 5612651.  Hitachi (or Fiat-Hitachi) used them, P/N 9114682, on their models EX270, EX300, UH121, UH122, UH143LC among others.  Bucyrus-Erie used them on their models 325H, 325SH and machines using the roller P/N of 82811519.  Dresser (also Yumbo-Dresser) P/N 3372095R1 was used on their 640, 645, 650B, and 655 machines.

8. MITSUBISHI, CATERPILLAR, JOHN DEERE, P&H, BUCYRUS-ERIE, CASE  and others used the same links and pads in several instances.  The Mitsubishi 380-2 track we have are 47 sections in length, designed with 8.5 inch pitch (215.9 mm) they use 3/4 inch pad bolts.   John Deere, on their model 890, 890A, 990 excavators used 47 sections and used a P/N of AT58914.  Caterpillar used 49 sections per side on their model 235 excavators (on machines with serial numbers of 62X1-UP, 7WC1-535, 32K1301-UP, 8PD1-UP, 83X1-732, 81X1-UP, or 64R596-2236.)  Machines using more than 47 sections would require additional links and pads to be added.  Other common machines using 47 sections or less include: The Poclain-Case 300C, Link Belt LS4800, & Bantam Koehring 466C all use 45 sections per side.  Machines using 46 sections per side include the P&H  H1750 excavator model.  (Their P/N was 24Z128D1)  the Bucyrus Erie BE325H and BE3255HLink Belt LS4800PL, LS4900, LS4900PL models.  Other excavators, besides the Mitsubishi 350 and 380, John Deere models 890,890A, and 990 to use the 47 sections were the Case 220CK, the Liebherr R971 and Liebherr R961HD.  If you want to add one or more sections to our track, they will fit the Hein Werner models C22, C24, C28, Hyundai R350, Samsung MX13 (48 sections ea).  Other machines using more than 47 sections per side were the Bucyrus Erie 350H and 350SH (P/N 82943019), Link Belt LS5800, LS5800L, LS5800SL, the Case 300CL, Koehring 666E, and the Hyundai R450LC.

9.  The BOTTOM ROLLERS of the BUCYRUS ERIE 300H fit quite a few other machines.  Check your parts manuals.  The BE300H rollers (P/N 82811521) rollers are the same as the following part numbers:  IH Dresser=3194636R1  Samsung=1081-03680  Liebherr=5601352  JCB-Sumitomo=214/6900   Insley=Y120031  Fiat-Hitachi=45019640   Case=S515417  Bantam Koehring=3018.56491

10.  The track used on the BUCYRUS ERIE 300H had 53 sections per side, a pitch of 175.4mm, and used 5/8 inch track bolts.  Other manufacturers e.g. Caterpillar, Case, John Deere, Koehring,  P&H, Unit Crane, and Drott used the same basic link assemblies, with different lengths per side and sometimes different pad widths.  Shortening the track is quite easy while lengthening the track will require some extra links which you might not have available.  You may be able to salvage them from your current track groups.
    Machines using 46 sections per side include the Caterpillar 215B (link assy P/N 3V9026) which fit serial numbers 4JC1-UP, 4FC1-735, 14Z1-UP) and the Cat 225 serial numbers 51U2832-up, 61X1-up, and 76U1649-up).  The Drott  40D, 40E, 40EC, 40LC machines also used 46 sections per side.  The only machines using 47 sections of this track per side, that I know of, are the Case 1187 or 1187B. (Case P/N S232252)  The John Deere 693DHD, with a JD P/N of at134972, uses 49 sections per side.  The Unit Crane H202CT and the Case 980 and Case 980B used 50 sections per side.  The P&H H1000 used 51 sections and the P&H H1200 used 52 sections.
    Machines that used the identical number of sections per side, 53,  as the Bucyrus Erie 300H were the Koehring 6620 and Drott 50D, 50E, 50EC models (Drott P/N 217442 + 217473).  Another manufacturer using the same basic link assemblies was Caterpillar, using the 53 section link assembly P/N 3V9025, for the Caterpillar 225 with serial numbers of 2ZD1-549, 51U2832-up, or 76U1649-up).  Hein Werner also used the same links on their C14B and C16B models.
    The Case 1280 and 1280B (P/N S231998) used 54 sections while the Koehring 6625 used 56 sections.

11. SEGMENTED SPROCKET HUBS FOR EARLY D7 CRAWLERS   These sprocket hubs will replace the earlier spoke type hubs with the weld on rims.  This allows you to replace the individual segments in the future without having to pull the final drives or weld on a new sprocket rim.  These hubs fit the D7 models D7 7M, D7 3T, D7 4T, D7 6T, and the D7 17A'S.  Some of the part numbers which interchange for this model sprocket are 4F6069 4M4870 1F0925 1F0926 3S9140 3S7092 3S9141.
The disc type sprocket hub, including segments, is priced at $700.00 while the spoke type sprocket hub with the adapter ring and segments is $500.00 (BOTH SEGMENTED TYPE SPROCKETS SOLD)

12. THE TRACK AND UNDERCARRIAGE PARTS FOR THE JOHN DEERE 690E LC FIT MANY MAKES/MODELS OF MACHINES.  While the JD 690E LC has 49 sections per side, other machines may have less sections, and others may have more sections per side of the same track.  Machines which use the identical number of sections per side (49) are the Caterpillar models E300 (Serial numbers 1KG 1 and up, and Ser# 2CF 1 and up,)  Daewoo 220LC, Hyundai R210LC,  Mitsubishi MS280, Mitsubishi MS300, Samsung H.I. MX222LC, Samsung H.I. SE210LC.
Machines using less than 49 sections per side (shortening track is quite easy) are: 45 sections Hyundai R210, Samsung MX222, Samsung MX8, Samsung SE210.   46 sections per side fit: Ishikawasi models IS085 AND IS220....the Liebherr R912STD and the Mitsubishi MS240.  The John Deere 790 excavator also used 46 sections per side.  The John Deere 790D used 47 sections per side, as did the Kobelco K909A.  The machines using 48 sections per side are the Mitsubishi MS270 and the Sumitomo-LinkBelt  LS3400FJ.

Adding sections to your track groups will require you to salvage some links from your old track, rebuild them as necessary, or replace them if needed and add the sections to the 49 sections of the JD690ELC.  Machines using 50 sections per side include the Caterpillar EL240 (ser#4JF1 thru 148), the Hyundai R200, John Deere 790LCLiebherr R902HDLC and R922HDSLMitsubishi excavators including the MS240LC, MS300, and MS300LC also used 50 sections per track.  Excavators using 51 sections per side were the John Deere 790DLC and the 790 ELCHyundai models R250LC and R250NLC, Samsung SE240LC, SE240NLC, and the Kobelco models K909ALC and K909LC.   Excavators using 52 sections per side include the Liebherr models R912HDSL, R932HDS, R932HDLS and the Sumitomo-LinkBelt LS3400C.   The Hyundai R200LC uses 54 sections.  The Liebherr HS832, HS832HD, and the HS933 all used 56 sections.

While all the above track is interchangeable, taking into consideration the number of sections per side, the sprockets and rollers for the 690ELC do not interchange. (bolt hole patterns)





Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
