Quantities required are based upon your model, serial number, and  the condition of your clutch.  There were also two sizes of steering clutches in these machines.  The earlier clutches had larger diameter clutches and discs.  (9 1/8" or 231 mm for the lined disc) (8 5/8" or 220mm for the steel plate)  The later clutches had the small clutch discs.  (7 15/16" or 202mm lined friction discs) (7 1/2" or 190 mm steel separator plate)

Check your clutches closely.  You can often get by with only replacing the friction discs.  Use your best judgment for evaluating your steel plates.  You do not want to install plates that are rough and will accelerate the wear on your new fiber discs.  Clean them with wire brushes, sandblasting, or whatever it takes to get them as smooth as possible and then make your decision.  It is up to you of course, but unless you just like to pull wrenches, these steering clutches are not that much fun to have to remove and reinstall because you tried to save a hundred dollar bill.

EARLY STYLE DISCS

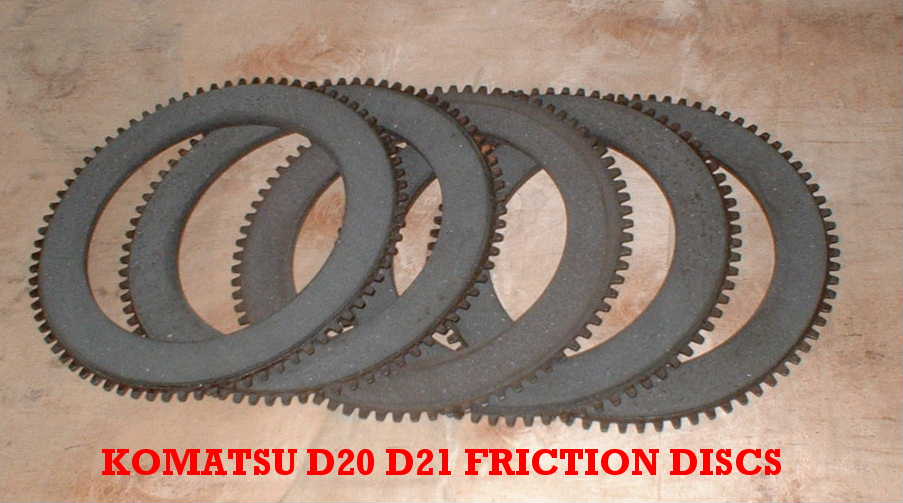

100-22-15101 Friction discs  24.00 ea   LARGE O.D. 9 1/8"  (231mm)

 (check your manual, different models used different quantities)

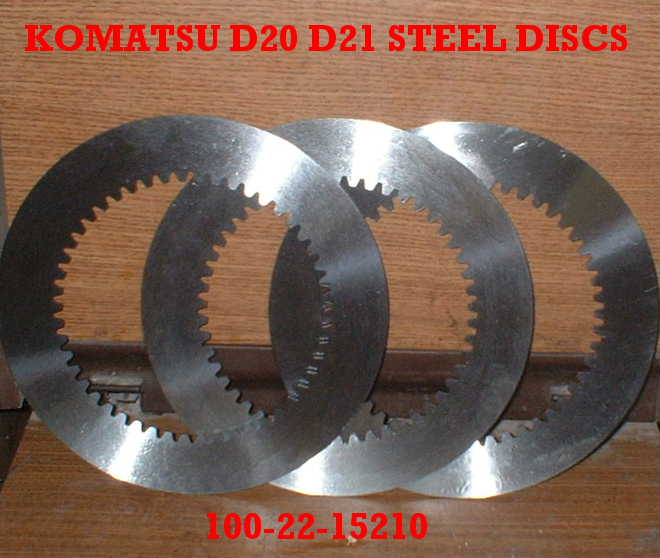

100-22-15210 Steel separator plates   8.40 ea  LARGE O.D. 8 5/8" (220 mm)
 (check your manual, different models used different quantities)

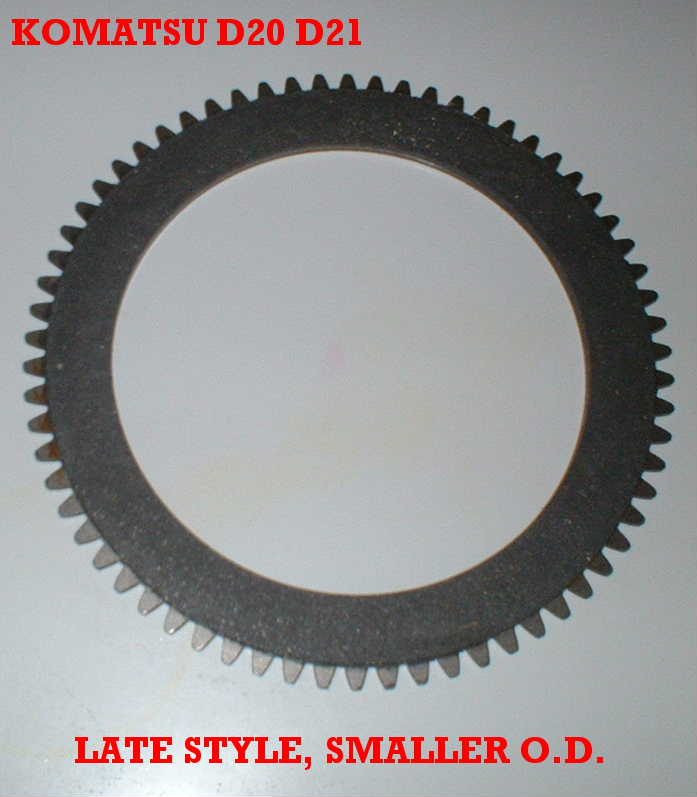

LATE STYLE DISCS ARE SMALLER

104-22-33321 Friction Discs 24.00 ea  ( 7 15/16" or 202mm)

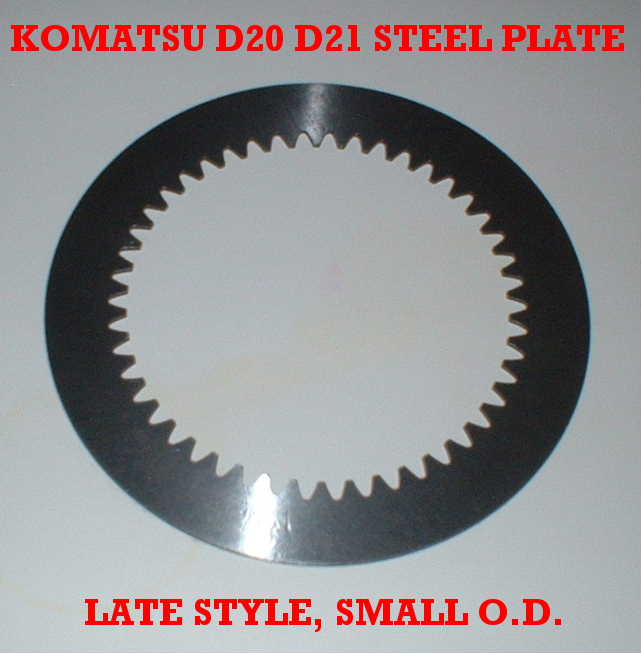

10E-22-21320 STEEL SEPARATOR PLATE 8.40 ea (7 1/2" or 190 mm)

Click HERE to view all of our new steering clutch discs.


Email  webmaster@tractorparts.com for orders or questions.


Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd., Boise, Idaho, 83716  US
All prices are in USD
All OEM part numbers are for references only
