IH500 Crawler STEERING CLUTCHES

IH500 crawler
IH500 STEERING CLUTCHES

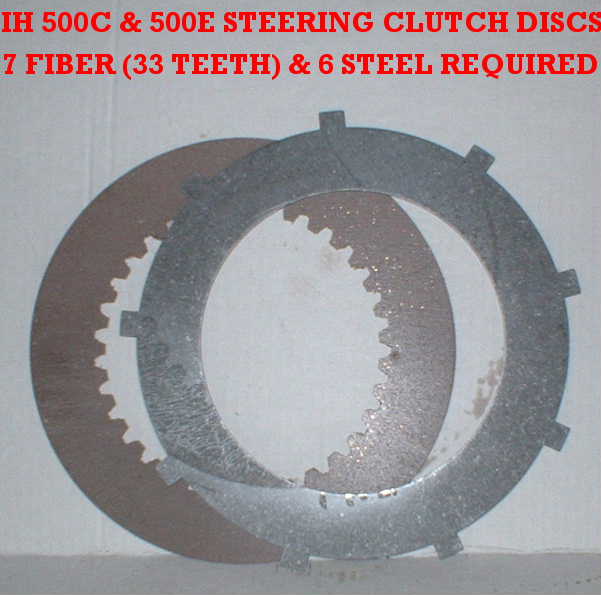

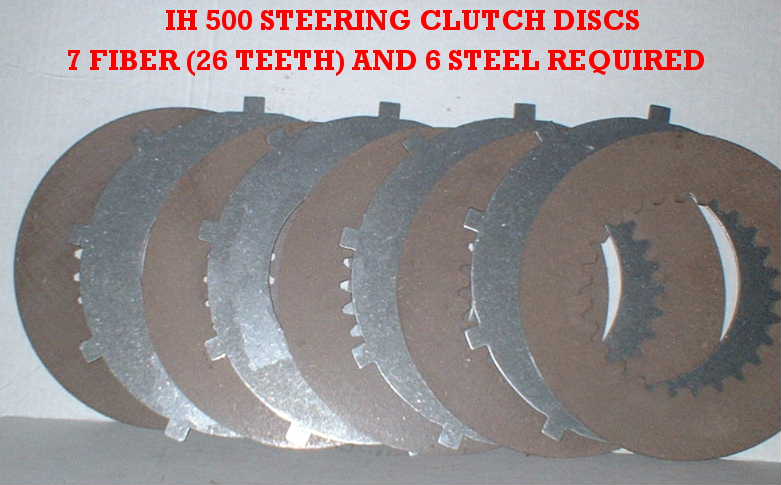

The steering clutches for the International model 500, 500C, and 500E series crawlers were derived from the earlier TD4 and TD5 crawlers. The 500 and early 500C's (9" diameter discs) crawlers used 7 fiber discs 675848R2 and 6 steel discs 635384R1. The later serial numbered 500C's and all 500E's (9 15/16" diameter discs) also used 7 fiber discs 676834R2 or (R1) and 6 steel discs 676833R2 or (R1) on each side.  We supply new after market replacement discs for both style of clutch packs.


To be sure that you get the correct discs, please make sure that your discs match the dimensions and tooth counts.

FOR AN UPDATED LISTING OF OUR IH 500 PARTS AND PRICES..................(CLICK HERE)



Click HERE to view all of our new steering clutch discs.   gglogocopy.jpg (46227 bytes)


Email  steeringclutch@gmail.comtractor_parts_email for orders or questions.

visasmalllogo MClogoshrunk
Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
All prices are in USD
All OEM part numbers are for references only
