D6 STEERING CLUTCHES

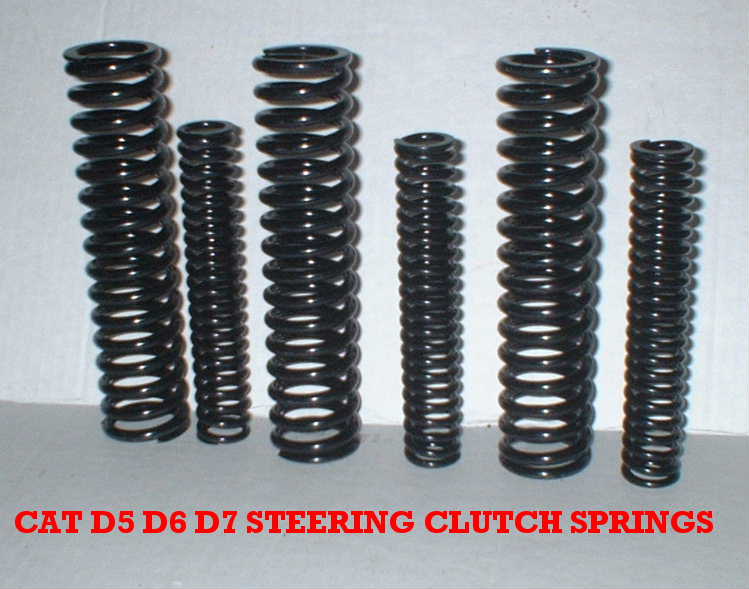

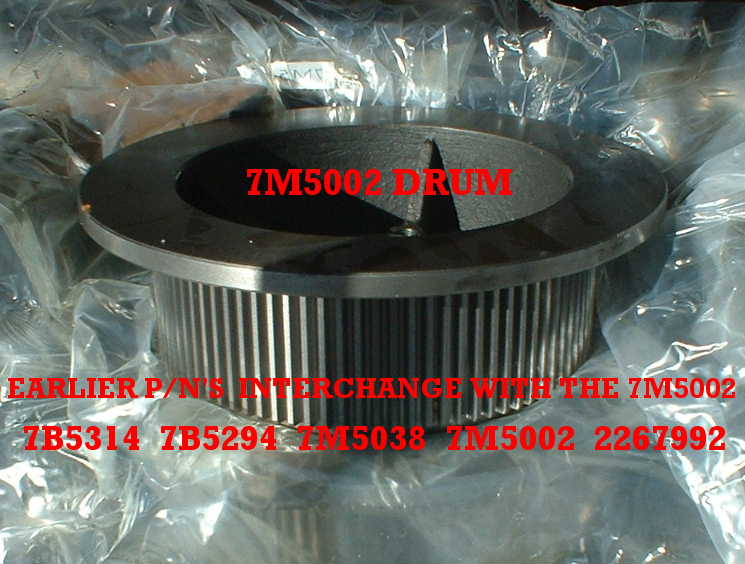

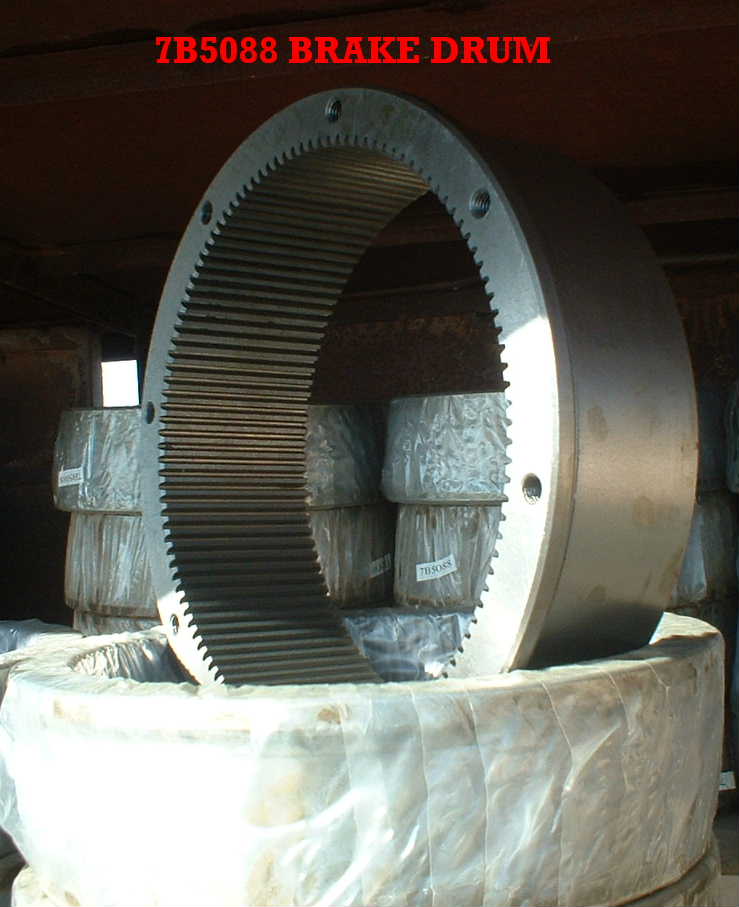

The D6 steering clutches ( D6 4R, 5R, 8U, 9U) and D6B 37A and 44A are the same design as the later D5 model machines, using the same inner driving drums, same bimetallic friction discs, same steel separator plates, clutch springs, and even the same brake drum and brake linings! Twelve (12) bimetallic friction discs and twelve (12) steel separator plates are required for each clutch pack. Unless severe damage has occurred, you often have to replace only the bimetallic friction discs. This keeps your costs down quite a bit. I would highly recommend that you check your brake bands at this time, unless you just enjoy pulling wrenches. All parts listed below are new replacement parts, non oem.
Brake Band relining kit $42.00 per clutch (a band is 3 sections, the price includes all rivets and linings for one complete brake band)

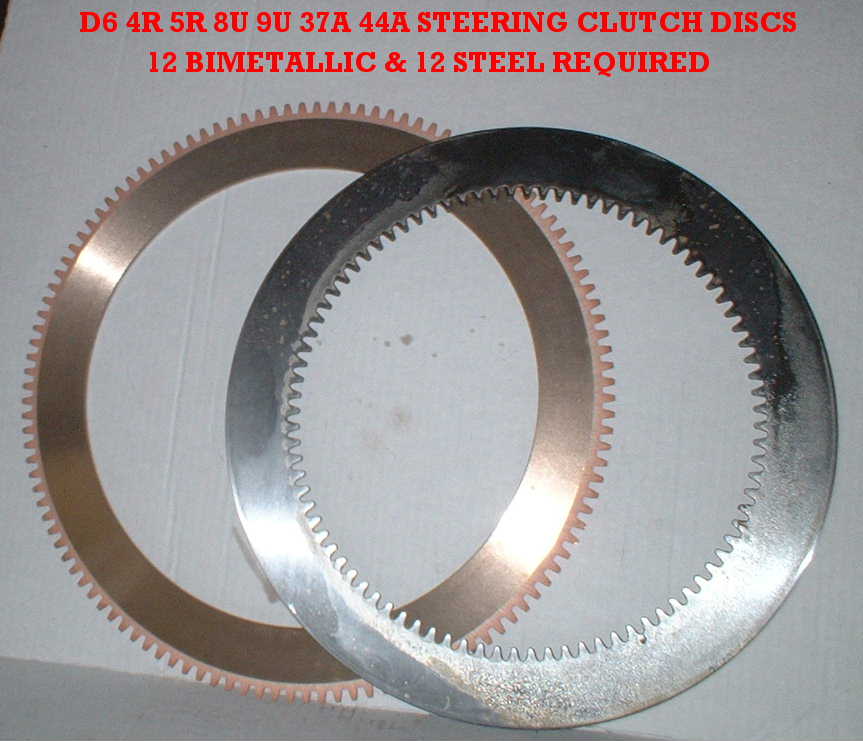

CAT D6 STEERING CLUTCH DISCS

FOR AN UPDATED LISTING OF AVAILABLE PARTS, PRICING....................(CLICK HERE!)

CATERPILLAR STEERING CLUTCH SPEC SHEET



Click HERE to view all of our new steering clutch discs.     gglogocopy.jpg (46227 bytes)


Email  webmaster@tractorparts.com for orders or questions.


Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
All prices are in USD
All OEM part numbers are for references only
