D4 Steering Clutch
D4 STEERING CLUTCHES

The old D4 steering clutches, from the 4G/6G series, the 7J, 2T, 5T, and 6U/7U series originally used the riveted on lining style of friction discs. We can convert you to the bimetallic style friction discs and eliminate a lot of your steering clutch problems. We highly recommend converting to the bimetallic driving discs vs. the old riveted on lining style discs. This is an update to the earlier style clutches and cuts down on the possibility of frozen clutches and gives increased life and higher coefficient of friction to your clutches for a longer period of time.

Instead of using 8 friction discs with the riveted on linings and 8 steel separator discs, you will use 12 3F5504 bimetallic discs (sintered bronze) and 12 steel discs for each steering clutch. No other changes are required in inner driving drums or brake drums. You can, in most cases, re-use your existing 8 steel discs and merely add four more new steel discs to go with the 12 sintered bronze bimetallic discs needed for the conversion.

FOR AN UPDATED LISTING OF ALL OF OUR PARTS, PRICING, AND AVAILABILITY...........(CLICK HERE)

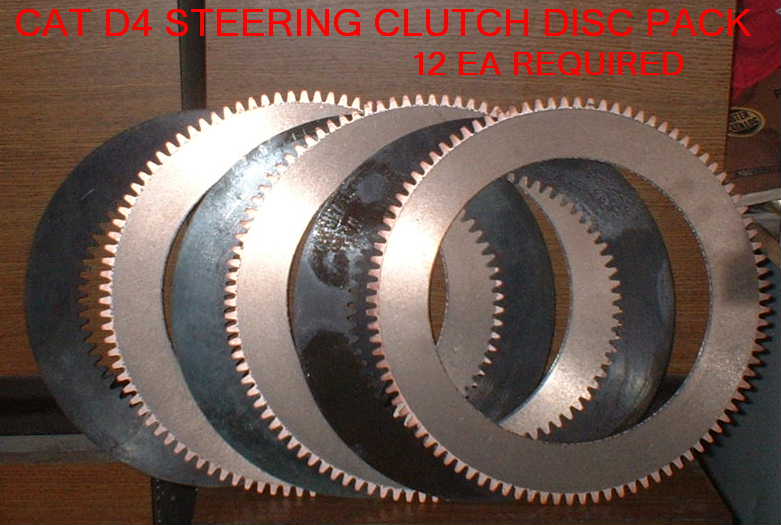

CAT D4 STEERING CLUTCH PACK
D4 CLUTCH DISCS

CATERPILLAR STEERING CLUTCH SPEC SHEET



Click HERE to view all of our new steering clutch discs.     gglogocopy.jpg (46227 bytes)


Email  webmaster@tractorparts.com for orders or questions.


Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
All prices are in USD
All OEM part numbers are for references only
