D2 / 933 (11A, 42A) STEERING CLUTCHES

  For the Cat crawlers D2 3J-5J 4U-5U vintage crawlers and dozers, and the 933 11A and later 42A models of the crawler loaders, we can supply some of the drums, inner and outer, pressure plates and parts as needed. The discs, both the driving discs and the steel discs we can supply new.  Be sure and check your springs too.  If they are bent, or if any are shorter than the others, replace as needed.  We sell the new outer springs at 7.00 ea and the inner springs at 5.00 ea

We highly recommend converting to the bimetallic driving discs vs. the old riveted on lining style discs. This is an update to the earlier style clutches and cuts down on the possibility of frozen clutches and gives increased life and higher coefficient of friction to your clutches for a longer period of time.

It requires 12 bimetallic discs and 12 steel discs per clutch (the old style used 8 ea).  Instead of using the 8 friction discs with the riveted on linings and 8 steel separator discs, you will use 12 bimetallic (sintered bronze) discs and 12 steel discs for each clutch.

The cost per clutch of course depends on how many steel discs you can use from your old clutch. If you can reuse your old steel discs, you only need 4 additional steel discs per clutch. The 12 bimetallic discs cost $252.00 per clutch (12 x $21) and the steel discs are $12.00 each. If you have to replace every single disc in each clutch the cost is 396.00 per clutch. If you can salvage your steel discs, you can save the cost of 8 steel discs, or $96.00 savings per clutch, bringing your cost per clutch to $300.00.

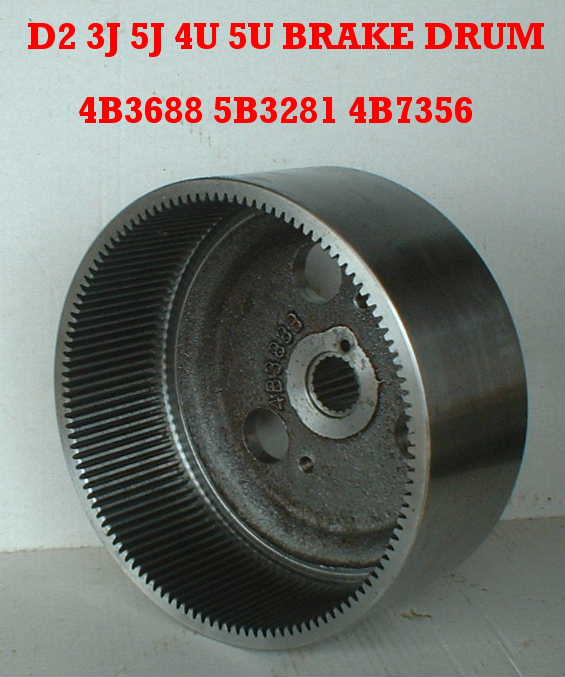

For the D2 3J, D2 5J, D2 4U, and D2 5U models we have also produced NEW BRAKE DRUMS. 4B3688->4B7356->5B3281 $285.00 ea
D2 BRAKE DRUM

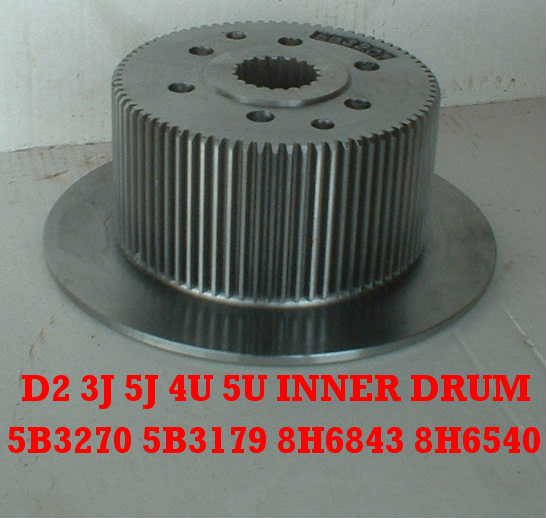

For the D2's and 933 track loaders we have manufactured NEW INNER DRIVING DRUMS 5B3270-5B3179-8H6540-8H6843 $255.00 ea
D2 INNER DRIVING DRUM

The 5H8530 bimetallic discs are $21.00/ea
The 4B3532 steel discs are $12.00/ea

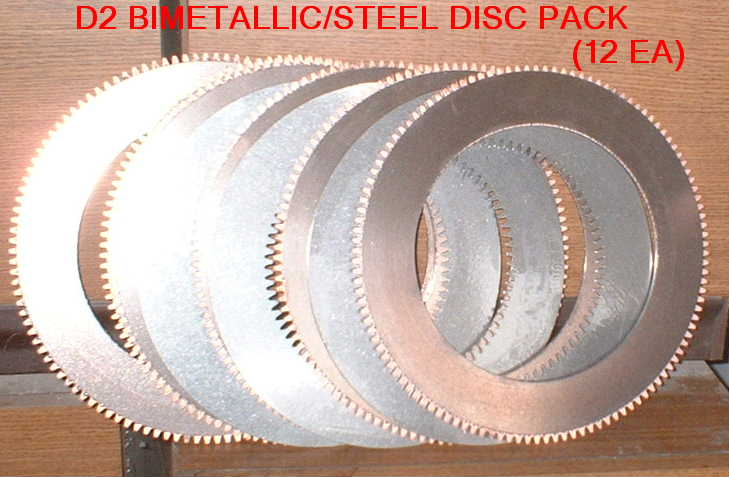

D2 STEERING CLUTCH DISCS
D2 CLUTCH DISCS
The 933 11A and 933 42A series use the same discs, Qty 12 ea required for each clutch.

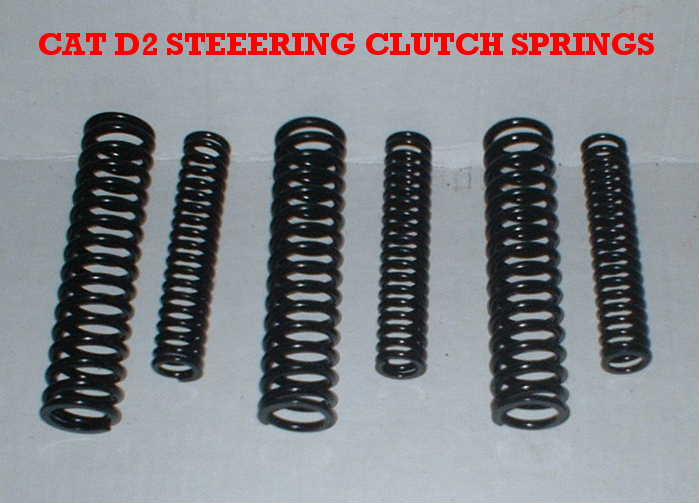

CAT D2 STEERING CLUTCH SPRINGS
6B8809 Steering clutch inner springs (6 required as needed) 5.00 ea

6B8808 Steering clutch outer springs (6 required as needed) 7.00 ea

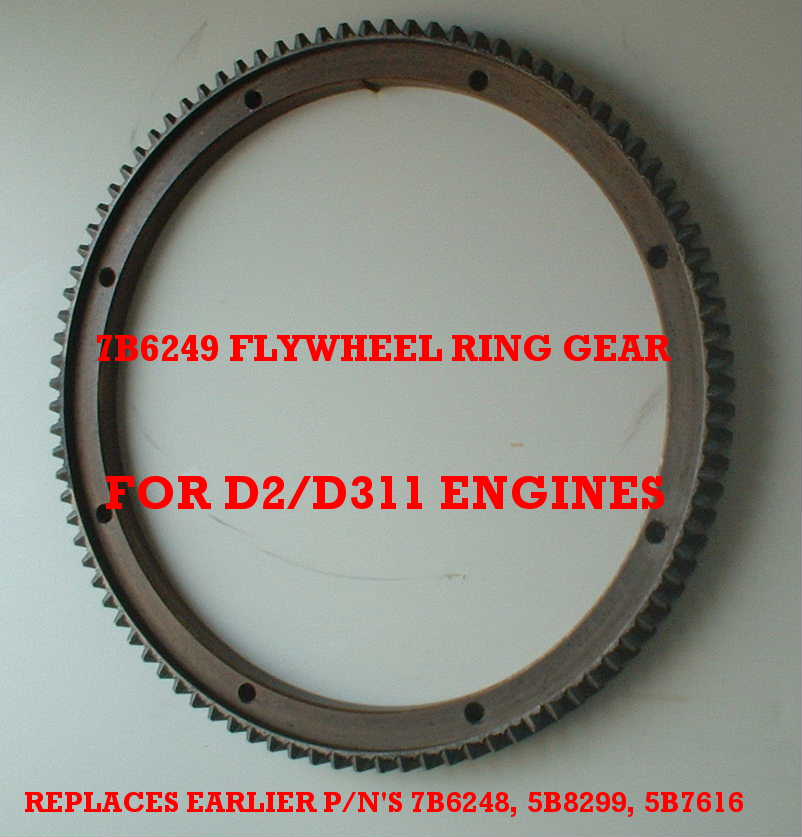

7B6248 FLYWHEEL RING GEAR (93 teeth)  just manufactured and now in stock  240.00
D2 FLYWHEEL RING GEAR

WE ALSO CARRY SOME OF THE NEW FLYWHEEL CLUTCH PLATES AND DISCS

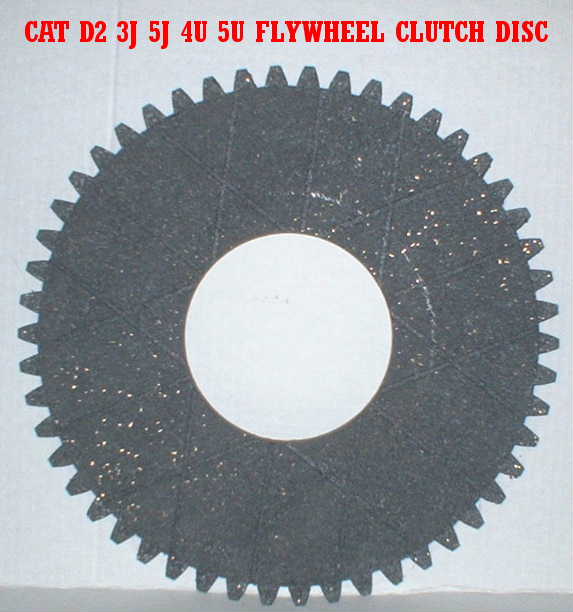

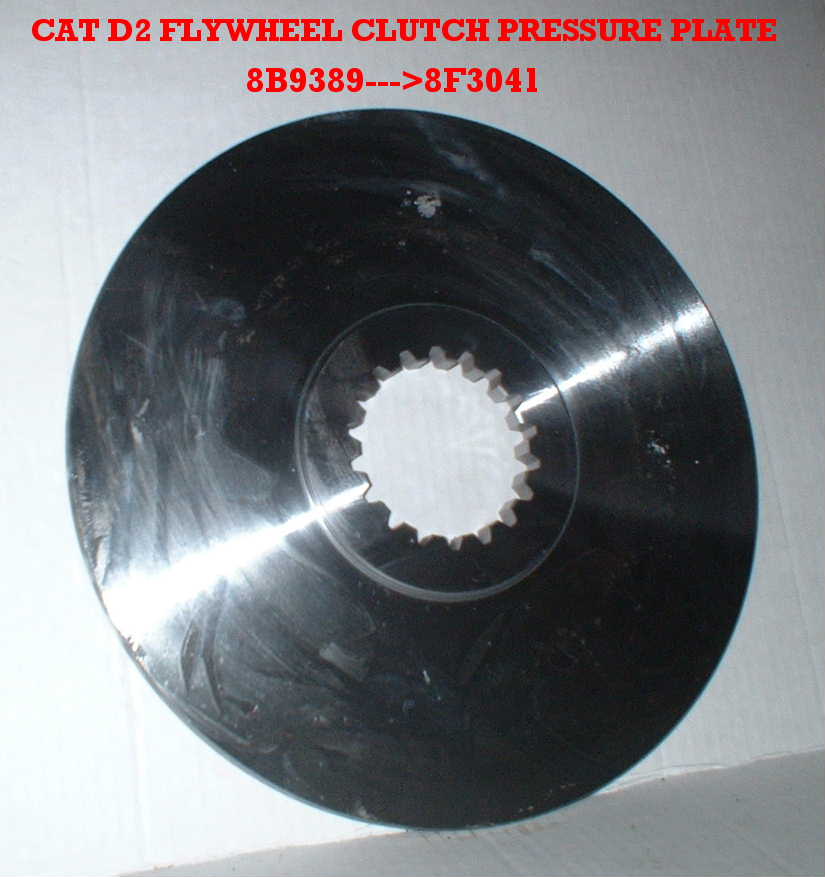

D2 FLYWHEEL CLUTCH PRESSURE PLATE       8B9389-->8F3041   $230.00 New Aftermarket      CAT D2 FLYWHEEL CLUTCH DISC 5F7434 --> 8B9392 --> 6Y7162  $90.00 New Aftermarket

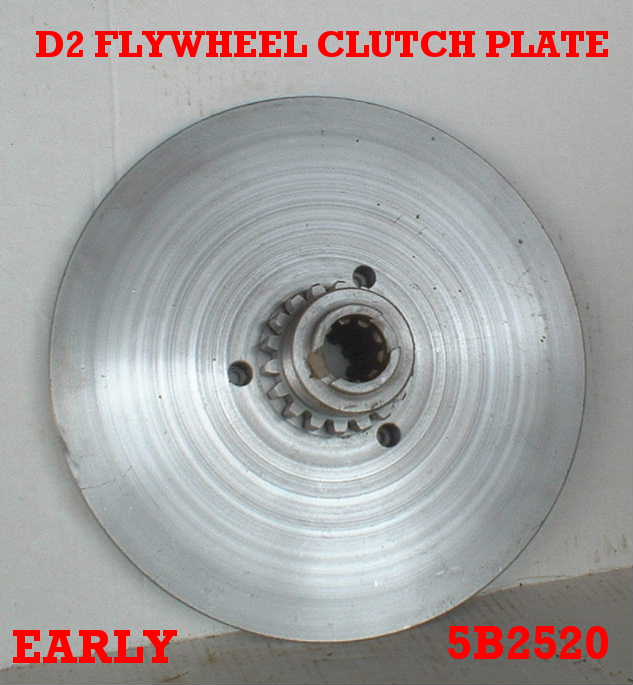

D2 FLYWHEEL CLUTCH PLATE 5B2520   5B2520 Flywheel Clutch Plate   $255.00 New Aftermarket



CATERPILLAR STEERING CLUTCH SPEC SHEET



Click HERE to view all of our new steering clutch discs.





Email  webmaster@tractorparts.com for orders or questions.


Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd., Boise, Idaho, 83716  US
All prices are in USD
All OEM part numbers are for references only
