AC HD3  HD4 653 655 STEERING CLUTCHES

  The Allis Chalmers crawlers, models H3, HD3, H4, HD4, 653, AND 655's all used the same steering clutches. 4 friction discs (fiber) were required per clutch and 3 steel separator plates. We supply new after market discs to take care of your problems and restore your clutches.

0233887--->71003719 fiber friction Discs @ 21.00 ea (4 required per 0233887--->clutch)

 70233886 (0233886) Steel Discs @ 15.00 ea (3 required per clutch)

Bimetallic discs, p/n 71010964 for replacing the fiber 0233887 (71003719)   @ 29.00 ea

If you want to upgrade your clutches to bimetallic style discs, instead of the fiber discs, you will get a longer lasting steering clutch. The clutch discs are less affected by moisture and are less prone to sticking or bonding together, seizing up your clutches. No additional discs are required.  You will have no more problems with broken teeth when using the bimetallic discs.  We now have these available at 29.00 each.

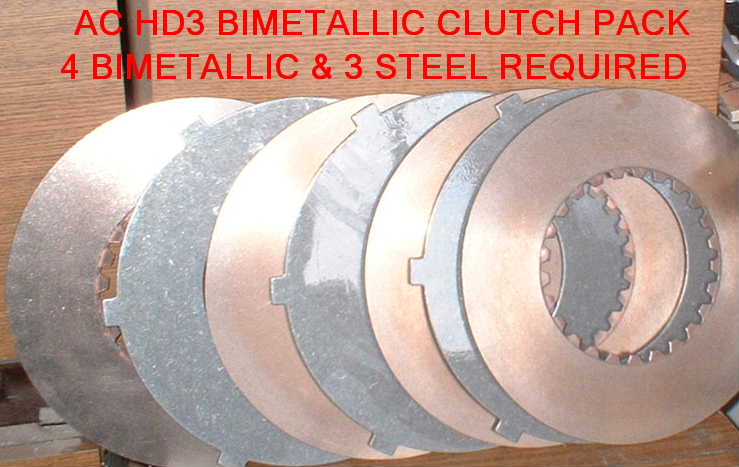

AC HD3 BIMETALLIC STEERING CLUTCH PACK
HD3 HD4 653 655 Bimetallic & Steel Steering Clutch Discs

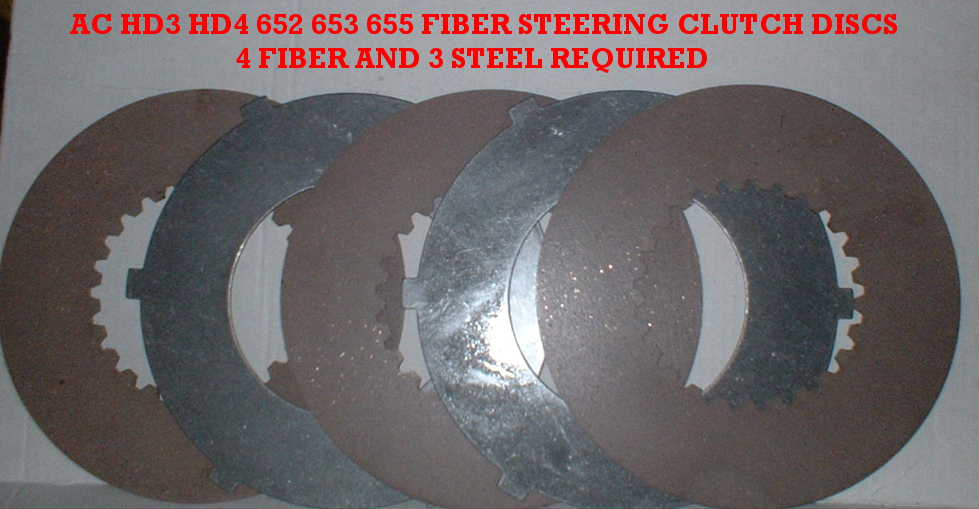

AC HD3 HD4 652 653 655 FIBER STEERING CLUTCH DISCS
Early Style Fiber and Steel Steering Clutch Discs

Click HERE to view all of our new steering clutch discs.





Email  webmaster@tractorparts.com for orders or questions.


Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd., Boise, Idaho, 83716  US
All prices are in USD
All OEM part numbers are for references only
